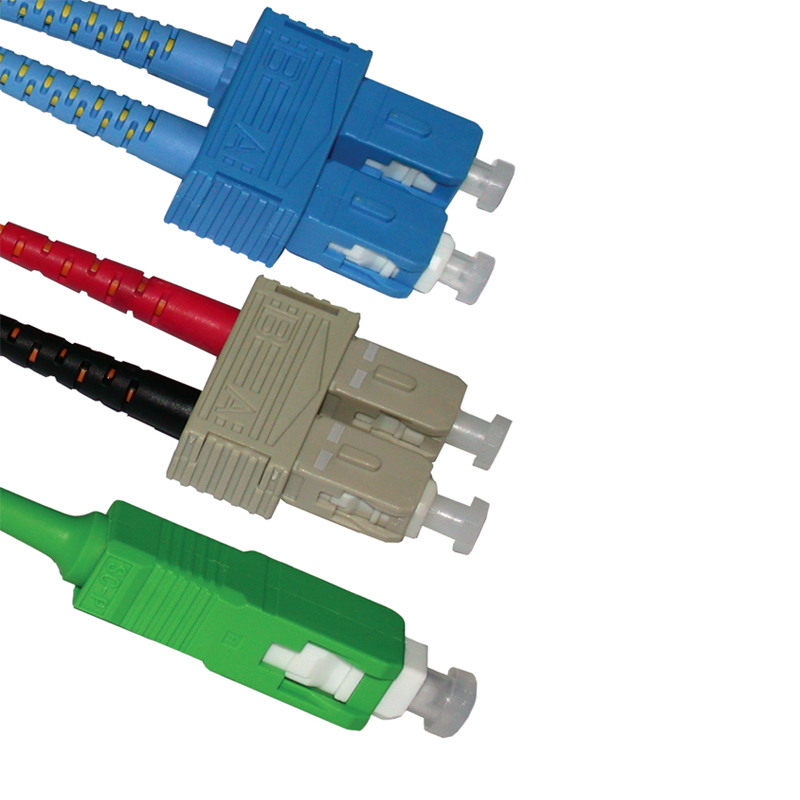

SC Series Fiber Patch cords
SC Series Fiber Patch cords
DESCRIPTION:
The fiber patch cord sc are designed for the most advanced fiber optic systems providing exceptional stability and low reflection (single-mode). SC patch cord are suitable for high-density applications. The SC connector uses a rectangular and molded design for quick and easy push-pull installation. This design prevents ferrule rotation and axial damage on the fiber contact points, reducing the potential for damage from mechanical vibration.
Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core
APPLICATION:
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
FEATURES:
Quick, highly repetable, low-loss connections
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameters
Hybrid patch-cords are available upon request
SPECIFICATION:
Connector type |
| FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | ||
Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
Cable diameter | mm | 3.0, 2.0, 0.9 | ||
Operating wavelength | nm | 1310, 1490,1550 | ||
Core Type |
| G.652, G655, G657, OM1, OM2, OM3, OM4 | ||
Ferrule End-face |
| PC | UPC | APC |
Insertion Loss | dB | ≤0,2 | ||
Max. Insertion Loss | dB | ≤0,3 | ||
Return Loss | dB | ≥45 | ≥50 | ≥55 |
Operation Temperature | C | -40 ~ +80 | ||
Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
Durability |
| ≤0.1dB change, 500 Cycles | ||
Sheath Color |
| SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | ||
Package |
| Each patchcord is packaged individually and individually test certification. | ||
