Fiber Patch cords

Classification

Features

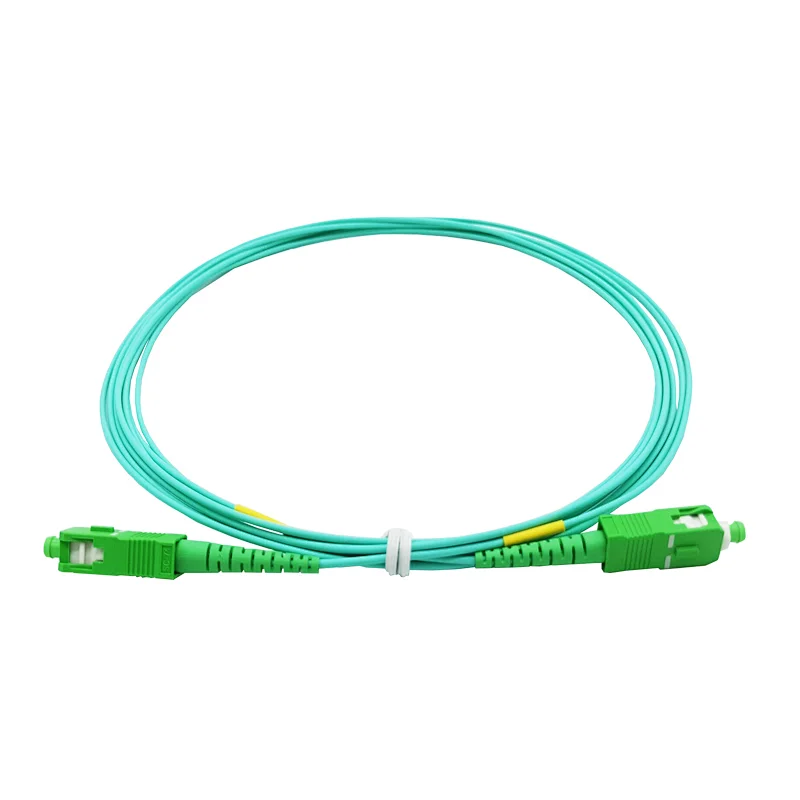

SC Patch cords

• SC type patch cord are designed for the most advanced fiber optic systems providing exceptional stability and low reflection (single-mode).
• Suitable for high-density applications.
• SC connector uses a rectangular and molded design for quick and easy push-pull installation. This design prevents ferrule rotation and axial damage on the fiber contact points, reducing the potential for damage from mechanical vibration.
• End-Face Type: PC/UPC/APC
• Fiber Diameter: 0.9mm, 2.0mm or 3.0mm
• The outer jacket can be PVC, LSZH, Armored etc
• Available for different connectors: SC, LC, FC, ST, MPO, MTP, MU, DIN, D4, E2K et
• Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are available

LC  Patch Cord

• These three areas all contribute to the performance of lc cord, but above all the manufacturing process defines the performance of the assembly.

• The LC connector was the first small form factor connector on the market.
• The use of a high performance 1.25mm ferrule gives the connector extremely high performance.
• LC connector comprises of a polymer body and a ceramic ferrule/sring/crimp barrel assembly plus a crimp over sleeve and rubber boot.
• These connectors are suitable for 900um, 2mm and 3.0mm cables.
• Low insertion loss, large return loss, stable performance
• Fiber type: SM, MM, OM1, OM2, OM3, OM4
• Compliance with IEC 61754-7, GR-1435-CORE and ROHS standards
• Suitable for military and industrial networks
• Operating wavelength: 850nm / 1310nm / 1550nm
• Low insertion loss and high return loss, high dense connection, easy for operation
• Customer lengths and connectors are available upon request

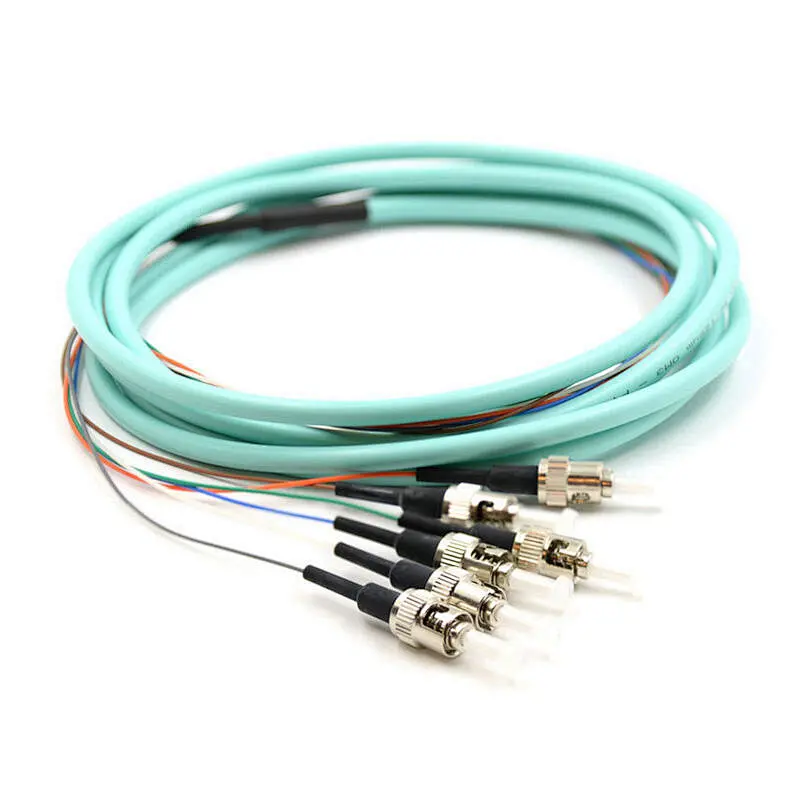

ST Patch Cord

• The st cord connector's non-slip housing makes installation quick and easy.
• The bayonet style coupling uses a convenient push-twist-and-lock method for easy mounting and is keyed to ensure easy alignment.
• The ST connector provides durable and pull proof interconnections and offers quick, economical and reliable terminations.
• Quick, highly repetable, low-loss connections
• Simplex and duplex
• Singlemode and multimode
• ODF of optical transmission system
• Connection of optical transmission equipments
• Telecommunication network
• Computer network

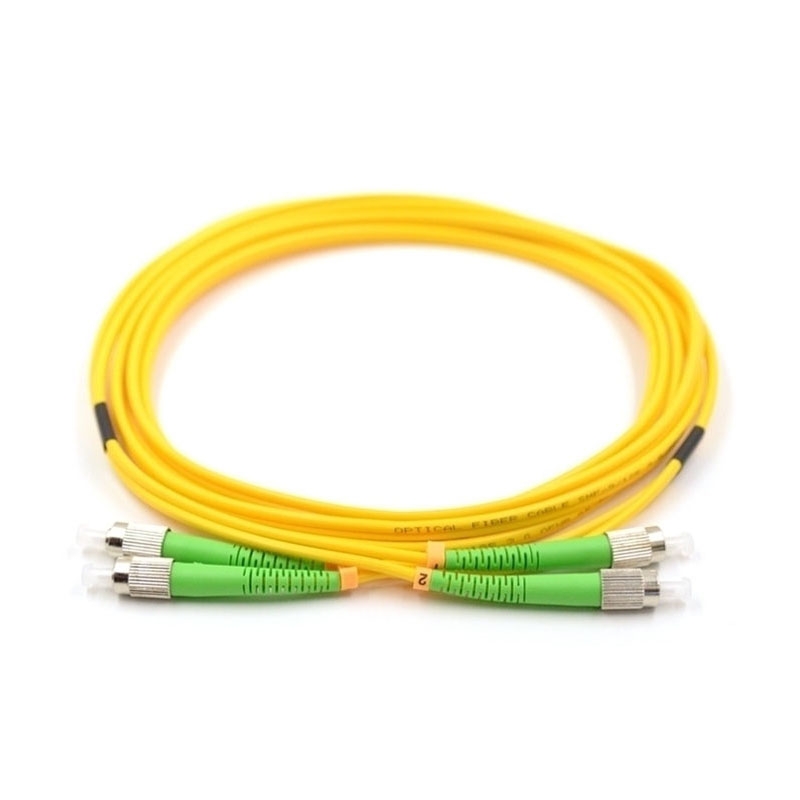

FC Patch Cord

• The cylindrical non-slip surface of the fc cord connector allows for fast and easy installation.
• The keyed threaded metallic coupling provides durable and reliable connections.
• A spring loaded, pull-proof zirconia ferrule optimizes performance and prevents rotational damage during mating and disconnections.
• Standard boot colors are green (angled single-mode),blue (single-mode), and white (multimode).
• UPC and APC available for the connectors
• G.652D, G.657A1, G.657A2 or MM optional
• UPC and APC polishing
• Various boot(cable) sizeds available
• Various connectors available
• Interferential parameters
• Hybrid patch-cords are available upon request

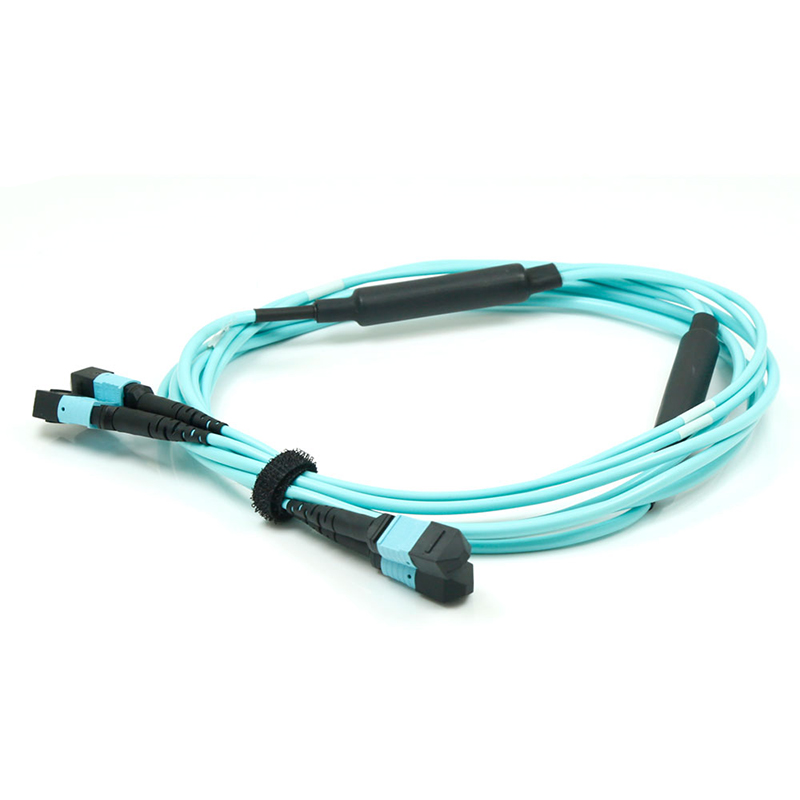

MTP/MPO Patch Cord

• Standard connector: MTP / MPO
• Low insertion loss, high return loss
• High-precision guide pin, precise alignment to ensure its transmission performance
• Quickly configure and network to reduce on-site installation time
• A, B, C three polarity option
• Provide 12, 24, 48, 72, 96, 144 cores, or provide customized products according to customer requirements
• Economical solution for mass-termination of fiber
• Designed for low loss and standard loss SM and MM applications
• Color coded housings available to differentiate fiber type, polish type and/or connector grade
• Good in repeatability and exchangeability
• 100% pre-terminated and tested in factory to ensure transfer performance.
• Rapid configuration and networking, reduce installation time. 3.Supports 40G and 100G network applications.
• Cable Jacket material: LSZH, OFNR, OFNP available.
• Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized
