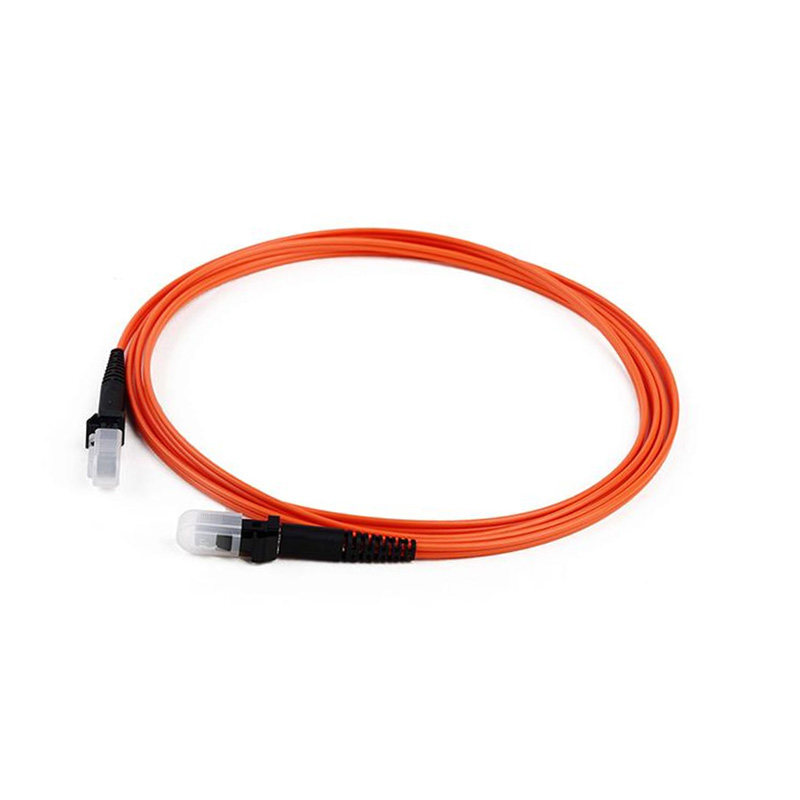

MTRJ Series Fiber Patch cords
MTRJ Series Fiber Patch cords
As half the size of an SC duplex, MTRJ connector assemblies provide a significant space saving for network interconnections, resulting in decreased system costs. With 2 fibers in one ferrule and a familiar RH style latch, the mtrj patch cords is fast becoming and industry favorite. Reduciing the risk of operator error when inter-connecting equipment and distribution panels, the connector design drops easily into existing copper network patch panel cutouts for easy upgrades. MTRJ connectors are available in male and female versions.
FEATURES:
MT based Multi-fiber connector for 2 fiber
Hight density connector allow up to 72 fibers to be terminated in a 1U distribution panel
Latched lever similar to that found on standard copper connect
Cable type Mini Zip
Quick, highly repetable, low-loss connections
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameters
Hybrid patch-cords are available upon request
Performance
Insertion Loss( with master plug) Standard Loss ≤ 0.5dB Low Loss ≤ 0.35dB T
Return Loss ≥ 45Db
Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core
APPLICATION:
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
SPECIFICATION:
Connector type |
| FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | ||
Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
Cable diameter | mm | 3.0, 2.0, 0.9 | ||
Operating wavelength | nm | 1310, 1490,1550 | ||
Core Type |
| G.652, G655, G657, OM1, OM2, OM3, OM4 | ||
Ferrule End-face |
| PC | UPC | APC |
Insertion Loss | dB | ≤0,2 | ||
Max. Insertion Loss | dB | ≤0,3 | ||
Return Loss | dB | ≥45 | ≥50 | ≥55 |
Operation Temperature | C | -40 ~ +80 | ||
Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
Durability |
| ≤0.1dB change, 500 Cycles | ||
Sheath Color |
| SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | ||
Package |
| Each patchcord is packaged individually and individually test certification. | ||
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few product is 7- 10 days.
