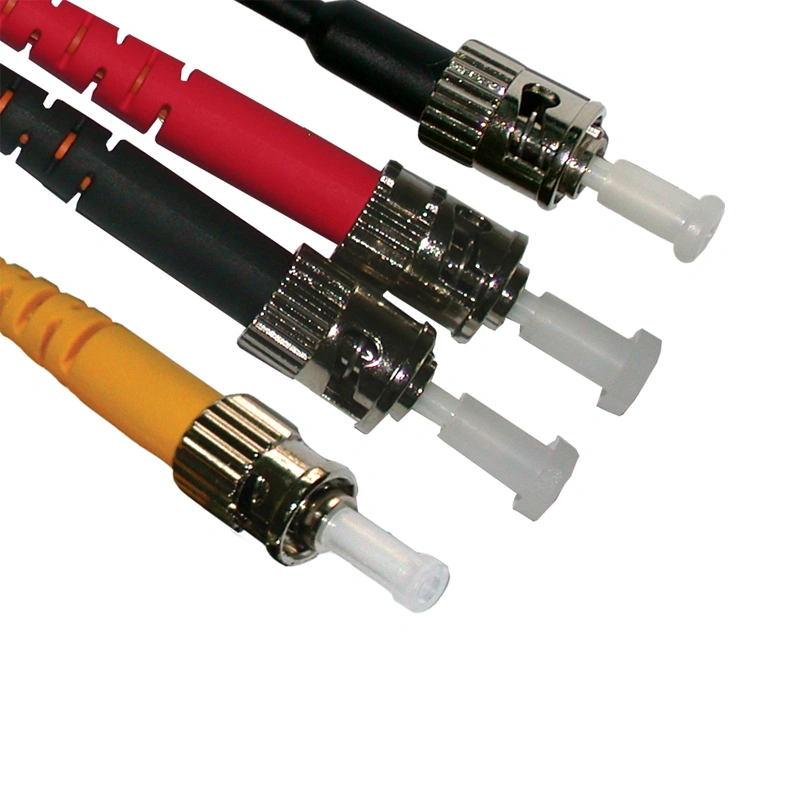

ST Series Fiber Patch cords
ST Series Fiber Patch cords
The st cord connector's non-slip housing makes installation quick and easy. The bayonet style coupling uses a convenient push-twist-and-lock method for easy mounting and is keyed to ensure easy alignment. The ST connector provides durable and pull proof interconnections and offers quick, economical and reliable terminations.
Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core.
APPLICATION:
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
FEATURES:
Quick, highly repetable, low-loss connections
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameters
Hybrid patch-cords are available upon request
SPECIFICATION:
Connector type |
| FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | ||
Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
Cable diameter | mm | 3.0, 2.0, 0.9 | ||
Operating wavelength | nm | 1310, 1490,1550 | ||
Core Type |
| G.652, G655, G657, OM1, OM2, OM3, OM4 | ||
Ferrule End-face |
| PC | UPC | APC |
Insertion Loss | dB | ≤0,2 | ||
Max. Insertion Loss | dB | ≤0,3 | ||
Return Loss | dB | ≥45 | ≥50 | ≥55 |
Operation Temperature | C | -40 ~ +80 | ||
Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
Durability |
| ≤0.1dB change, 500 Cycles | ||
Sheath Color |
| SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | ||
Package |
| Each patchcord is packaged individually and individually test certification. | ||
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
