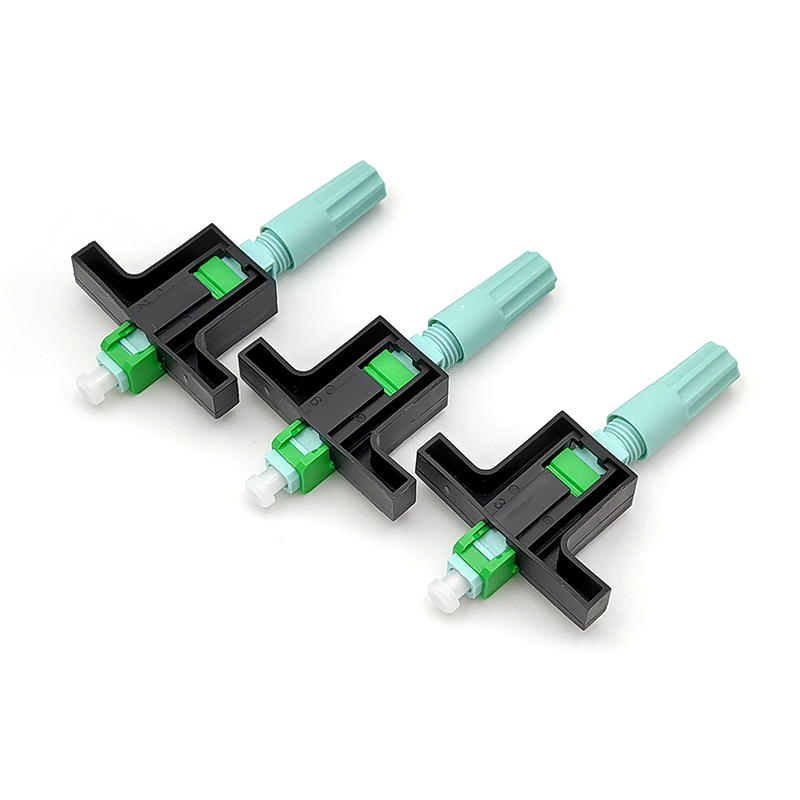

Field Assembly FTTH SC/APC Fiber Optical Fast Connector
Field Assembly FTTH SC/APC Fiber Optical Fast Connector
The apc fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design. This SC No Epoxy Pre-Polished Mechanical Connector is perfect for quick field termination. Requiring very little time and minimal training, this connector is optimal for the field technician with any level of experience. Listed below are the simple steps for a quick field termination using our Pre-Polished Mechanical Connectors.
FEATURES:
No special assembling tool
Easy for assembling with mechanical splice and no polishing
Easy for learning technology by a simple assembling method (within 1 and half minutes)
Minimize the defect rate by features of removal and reusable.
APPLICATION:
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads
SPECIFICATION:
Singlemode - UPC | Aerage: 0.2dB, Maximum: 0.5dB |
Singlemode - APC | Aerage: 0.2dB, Maximum: 0.6dB |
Multimode - PC | Aerage: 0.2dB, Maximum: 0.5dB |
Singlemode - UPC | Aerage: 40dB, Maximum: 40dB |
Singlemode - APC | Aerage: 45dB, Maximum: 40dB |
Multimode - PC | Aerage: 25dB, Maximum: 20dB |
Operating temperature | -40℃ to +75℃ |
Housing Color | Singlemode - UPC |
Singlemode - APC | Green |
Multimode - OM1/OM2 | Beige |
Multimode - OM3/OM4 | Aq |

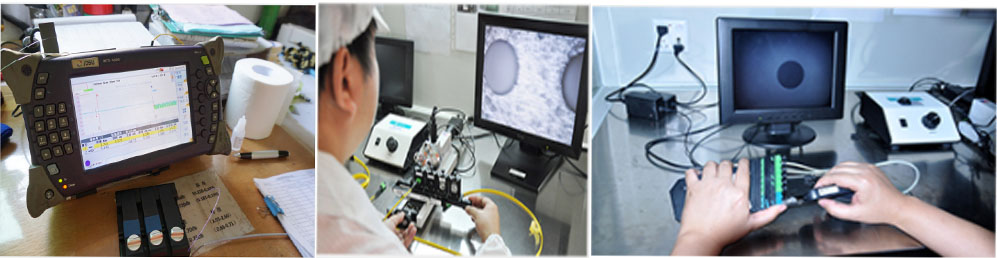

Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
