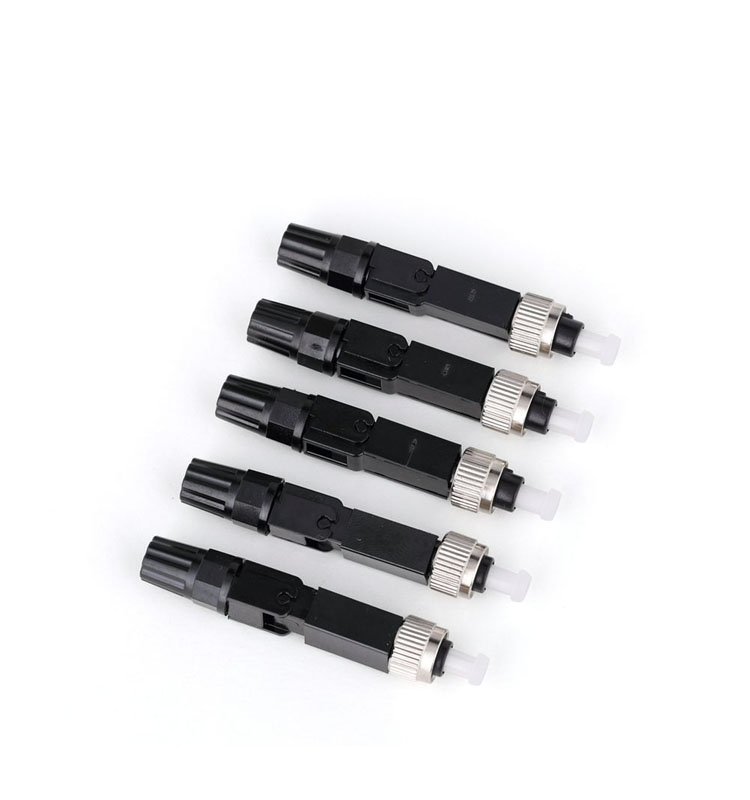

FTTH System FC UPC Fast Assembly Fiber Fast Connector
FTTH System FC UPC Fast Assembly FIber Fast Connector
The ftth fast connector are factory pre-polished and field installable connectors so that completely eliminate the need for hand polishing in the field. The fast connector has easy assembly and excellent stability features without further processing, such as polishing, adhesives to facilitate the termination of the fiber in the field and working hard to secure space environment alone can access for assembling like pole, manholes. Additional, it can reduced the defect rate dramatically by worker's connection error due to it can be reconnected.
SPECIFICATION:
FIBER TYPE | SM(9/125), MM(50/125, 62.5/125) |
Fibercabletype0.9mm Tight BufferFiber,2mm/ 3mm DropCable | |
Insertion Loss | <0.3db(PC),<0.2db(APC) |
ReturnLoss>50db(PC),>55db(UPC),>65db(APC) | |
Bare fiber strength | >5N |
Cladstrength>10N | |
Tension | >50N |
Tensilestrength (20N)IL≤2dBRL≤5dB | |
Mechanical durability(500times) | IL≤2dBRL≤5dB |
OperatingTemperature-5°C ~ +70°C | |
Storage Temperature | -40° C ~ +85° C |
FEATURES:
- No special assembling tool)
- Easyfor assembling with mechanical splice and no polishing)
- Easyfor learning technology by a simple assembling method (within 1 and halfminutes))
- Minimize the defect rate by features of removal and reusable)
APPLICATION:
- Premise environments.
- Connections at the desk for LAN environments)
- Patch panels.
- Direct equipment termination)
- Fiber to the Subscriber (FTTF) applications)
- Oepair/replacement requirements)
- Equipment test leads)
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
