FTTH System SC UPC APC Fast Assembly Fiber Fast Connector

FTTH System SC UPC APC Fast Assembly Fiber Fast Connector

Model NO.: SC fast connector
Delivery: FOB

Quantity:

Product Description

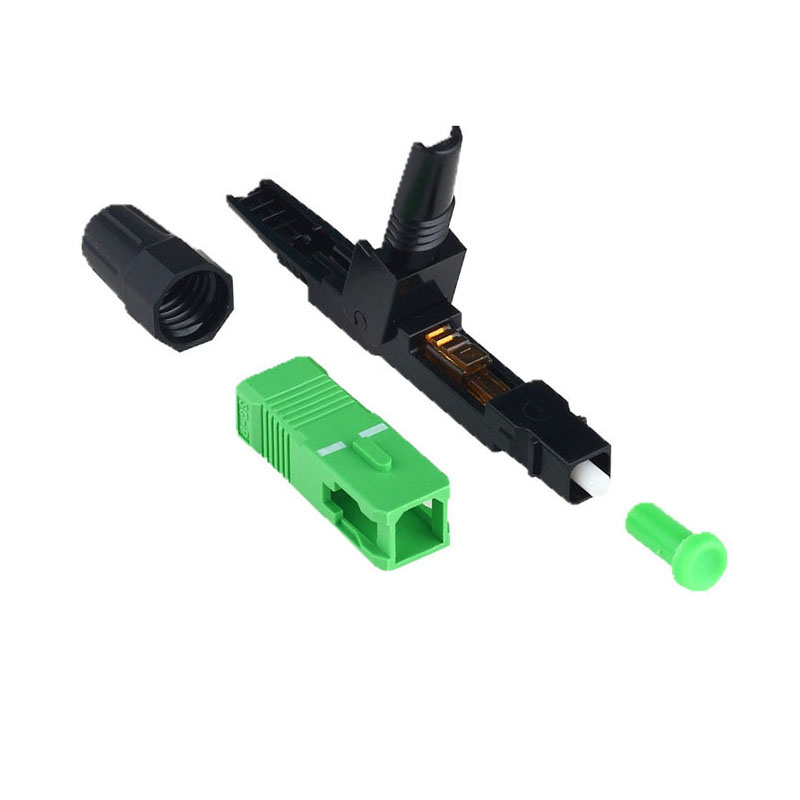

FTTH System SC UPC APC Fast Assembly Fiber Fast Connector

Assembly of the sc apc quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. Just Strip the buffer, cleave and clean the fiber and then insert the fixed-length fiber through the ferrule of the connector. Installation takes just minutes and couldn’t be easier. The Field Assembly SC Fast Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC,and FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types. The single-mode versions are available with UPC or APC ferrules.

FEATURES:

No special assembling tool.
Easyfor assembling with mechanical splice and no polishing.
Easyfor learning technology by a simple assembling method (within 1 and halfminutes).
Minimize the defect rate by features of removal and reusable.

APPLICATION:

Premise environments.
Connections at the desk for LAN environments)
Patch panels.
Direct equipment termination)
Fiber to the Subscriber (FTTF) applications)
Oepair/replacement requirements)
Equipment test leads)

SPECIFICATION:

*FIBER TYPE*	*SM(9/125), MM(50/125, 62.5/125)*
Fibercabletype0.9mm Tight BufferFiber,2mm/ 3mm DropCable
Insertion Loss	<0.3db(PC),<0.2db(APC)
ReturnLoss>50db(PC),>55db(UPC),>65db(APC)
Bare fiber strength	>5N
Cladstrength>10N
Tension	>50N
Tensilestrength (20N)IL≤2dBRL≤5dB
Mechanical durability(500times)	IL≤2dBRL≤5dB
OperatingTemperature-5°C ~ +70°C
Storage Temperature	-40° C ~ +85° C

Testing

All products have passed professional tests in order to providing better quality guarentee.

Testing

Certification

After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.

Certification
