GJSFJV Indoor Duplex Zipcord Flat Twin Fiber Optic Armored Cable
GJSFJV Indoor Duplex Zipcord Flat Twin Fiber Optic Armored Cable

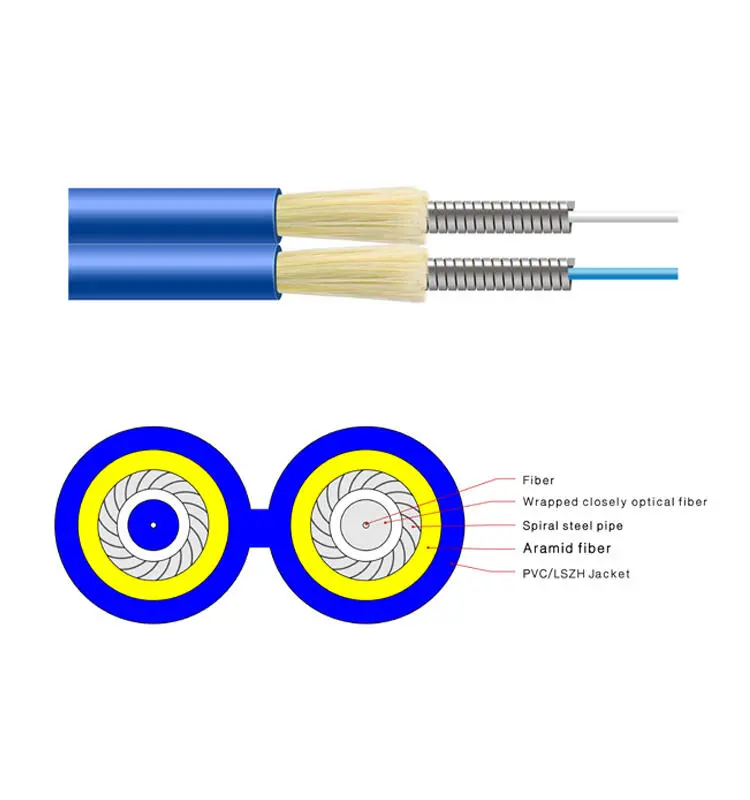

gjfjv optical fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath The fiber optic armored cable can provide extra protection for fiber optic cable without sacrificing flexibility or functionality within fiber networks, featuring more robust and reliable when encountered with rodents, moisture, and other issues that may cause damage. The armored fiber cable is now optimal for campus & building backbones, data centers, and industrial applications. This article will lead you to know this armored optical cable.
FEATURES:
- Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
- High strength aramid yarn,high performance outer sheath
- Light weight,flexibility,and friendly installation.
- Good mechanical and environmental performance.
- Flame retardant outer sheath provide good safety.
APPLICATION:
- All kinds of connector
- Fiber optic pigtails, patch cords.
- Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
- Fiber optic equipment and instrument
- Indoor cabling,building cabling,LAN, etc
- Long distance, outdoor/indoor cabling, trunking,etc
- Backbone network to the equipment in the building
OPTICAL SPECIFICATION:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850 | ≥500MHZ·km | ≥200MHZ·km | ||
| （Class A） | @1300 | ≥1000MHZ·km | ≥600MHZ·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
CABLE SPECIFICATION:
| Fiber Count | Tight Diameter mm | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| 2 | 0.6/0.9 | 2.0*4.0 | 30 | 300/750 | 200/1000 | 20D/10D |
| 2 | 0.6/0.9 | 3.0*6.0 | 40 | 300/750 | 200/1000 | 20D/10D |
