Indoor Armored Zipcord Duplex Fiber Optic Cable
GJSFJBV
Indoor Armored Zipcord Duplex Fiber Optic Cable consists of two independently armored simplex cable units joined in a figure-8 zipcord construction. Each unit features a tight-buffered fiber, spiral steel armour, aramid yarn and an individual outer jacket, providing enhanced mechanical protection and flexible duplex connectivity for indoor cabling and termination applications.
Indoor Armored Zipcord Duplex Fiber Optic Cable is designed with two independently armored simplex cable units joined in a figure-8 zipcord construction. Each unit contains a tight-buffered fiber protected by spiral steel armour, aramid yarn and an individual outer jacket.

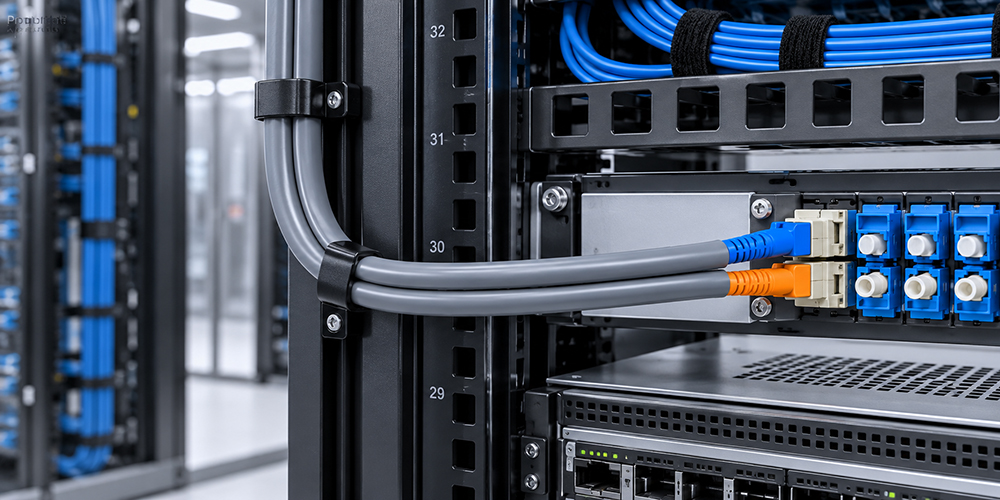

This construction provides enhanced mechanical protection while allowing the two cable units to be separated when required for routing, termination or connector assembly. It is suitable for indoor duplex fiber connections where flexibility, durability and independent fiber protection are required.
This construction provides enhanced mechanical protection while allowing the two cable units to be separated when required for routing, termination or connector assembly. It is suitable for indoor duplex fiber connections where flexibility, durability and independent fiber protection are required.

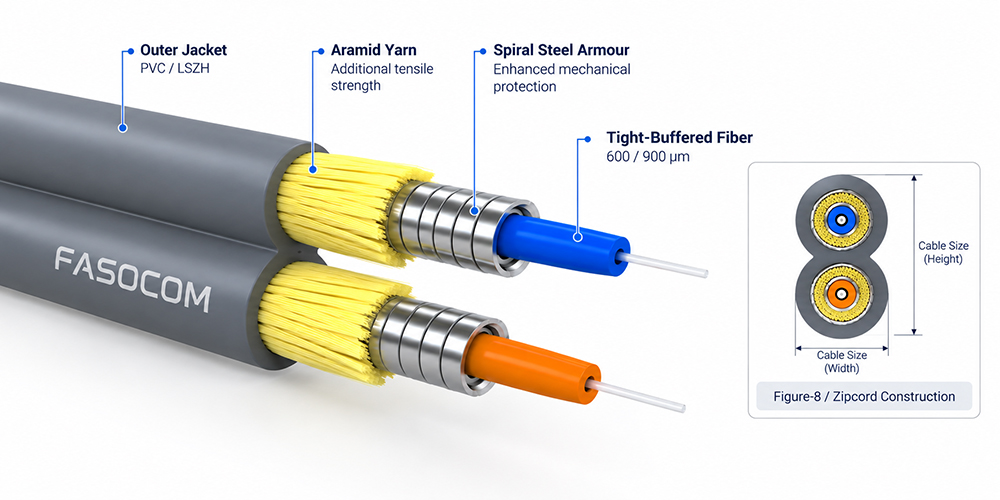

Cable Construction
The cable consists of two independently constructed armored simplex units joined in a figure-8 configuration. Each unit uses a 600 μm or 900 μm tight-buffered fiber, surrounded by spiral steel armour for mechanical protection. Aramid yarn provides additional tensile strength, while an individual PVC or LSZH outer jacket completes each cable unit.
Tight-Buffered Fiber
↓
Spiral Steel Armour
↓
Aramid Yarn
↓
Individual Outer Jacket
↓
2 × Armored Simplex Units
↓
Figure-8 / Zipcord Construction
↓
Spiral Steel Armour
↓
Aramid Yarn
↓
Individual Outer Jacket
↓
2 × Armored Simplex Units
↓
Figure-8 / Zipcord Construction
Key Features
• Two independently armored simplex cable units
• Figure-8 zipcord construction for duplex connectivity
• Spiral steel armour for enhanced mechanical protection
• Aramid yarn for additional tensile strength
• 600 μm or 900 μm tight-buffered fiber options
• PVC or LSZH outer jacket options
• Figure-8 zipcord construction for duplex connectivity
• Spiral steel armour for enhanced mechanical protection
• Aramid yarn for additional tensile strength
• 600 μm or 900 μm tight-buffered fiber options
• PVC or LSZH outer jacket options
