Indoor Uni-Tube Armored Duplex Fiber Optic Cable
GJSFJV UDX
Indoor Uni-Tube Armored Duplex Fiber Optic Cable is a two-fiber indoor cable featuring two tight-buffered fibers enclosed within a shared spiral steel armor and reinforced with aramid yarn. Its common armored construction provides enhanced mechanical protection while maintaining a compact and flexible cable design for indoor fiber connectivity and termination applications.
Indoor Uni-Tube Armored Duplex Fiber Optic Cable is designed with two tight-buffered fibers enclosed within a shared spiral steel armor. An aramid yarn layer provides additional tensile reinforcement, while the common outer jacket protects the cable assembly for indoor installation.

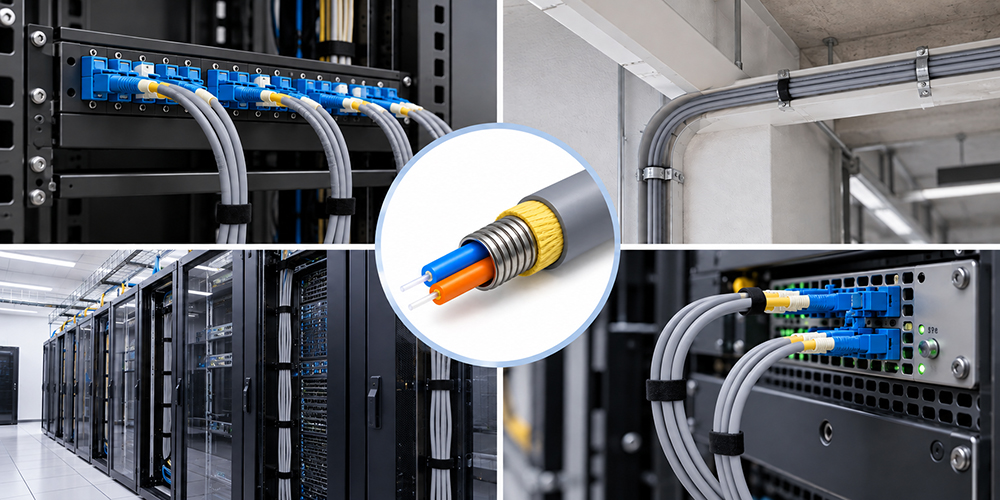

The Uni-Tube construction integrates two optical fibers into a single round armored cable, providing mechanical protection in a compact form while allowing the two fibers to remain together throughout the cable run. It is suitable for indoor cabling where additional protection is required compared with a standard duplex fiber optic cable.
The Uni-Tube construction integrates two optical fibers into a single round armored cable, providing mechanical protection in a compact form while allowing the two fibers to remain together throughout the cable run. It is suitable for indoor cabling where additional protection is required compared with a standard duplex fiber optic cable.

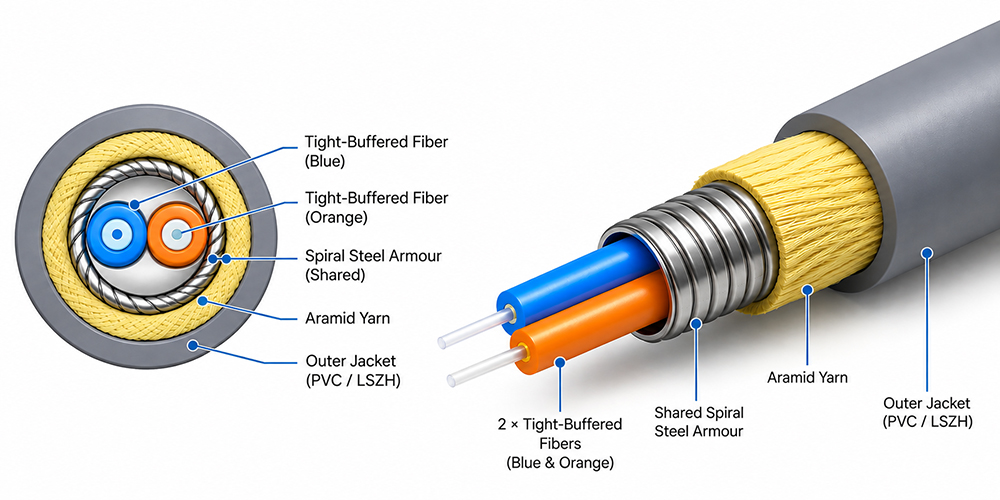

Cable Construction
2 × Tight-Buffered Fibers
→ Shared Spiral Steel Armour
→ Aramid Yarn
→ Outer Jacket
Key Features
• Two tight-buffered fibers integrated into a single round armored cable.
• Shared spiral steel armor provides enhanced mechanical protection.
• Aramid yarn provides additional tensile reinforcement.
• Compact Uni-Tube construction combines two fibers within one common armored structure.
• Available with 600 μm or 900 μm tight-buffered fibers.
• PVC or LSZH outer jacket options are available for different indoor cabling requirements.
• Shared spiral steel armor provides enhanced mechanical protection.
• Aramid yarn provides additional tensile reinforcement.
• Compact Uni-Tube construction combines two fibers within one common armored structure.
• Available with 600 μm or 900 μm tight-buffered fibers.
• PVC or LSZH outer jacket options are available for different indoor cabling requirements.
