GJSFJV Indoor Simplex Fiber Optic Armored Cable

Simplex Armored cable
Delivery
EXW/FOB/CIF
Country of Origin
GUA,CN
Quantity:
Contact Now
add to cart

simplex fiber optic cable

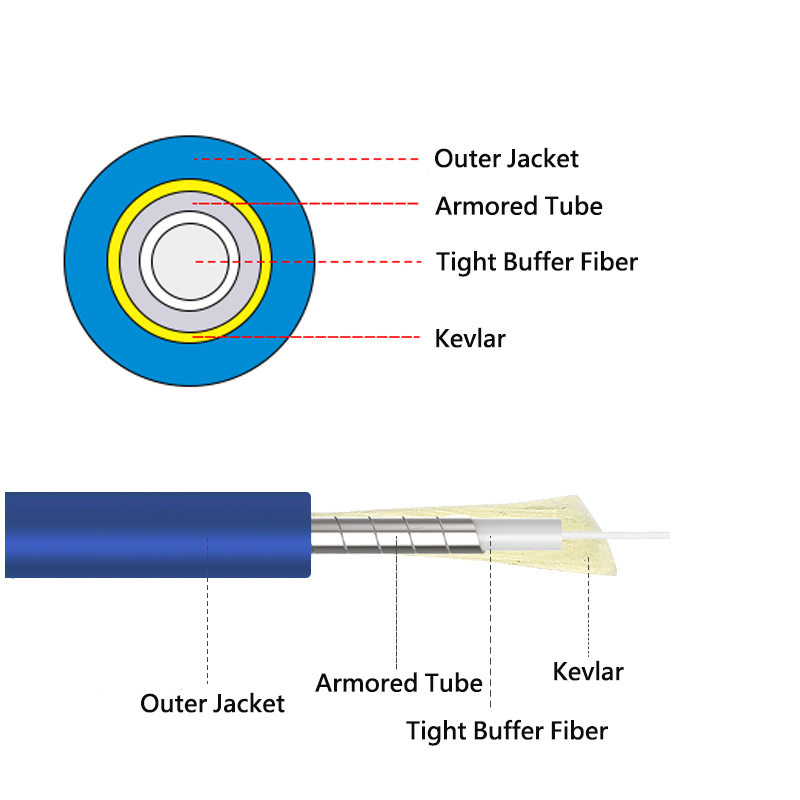

GJSFJV Indoor SimplexFiber Optic Armored Cable



The simplex fiber optic cable are much stronger and tougher than common cables, which are designed to withstand crush, pressure, and rodent issues. They possess high flexibility and durability when used in harsh environments or limited space. When it comes to unarmored and armored fiber optic cables comparison, the distinctive difference lies in the outer protective layer. Precisely speaking, the armoring material doesn't have to be metal, which can be fiber yarn, glass yarn, polyethylene, etc. The additional outer protective layer for optical cable makes the armored cable special, so the armored cables will be installed in locations that may expose to mechanical damages, while unarmored cables are normally used for control systems.


FEATURES:

  • All kinds of connector
  • Fiber optic pigtails, patch cords.
  • Fiber optic equipment and instrument
  • Indoor cabling,building cabling,LAN, etc
  • Long distance, outdoor/indoor cabling, trunking,etc
  • Backbone network to the equipment in the buildin
  • The cabling from desk or under the carpet to ceiling
  • Small bending radius,large capacity,multi user indoor installation,unit cabling,independent using,convenient connection with each end devices.
  • Recommend high density wiring,small installation space and curvature

APPLICATION:

  • Stainless steel wires enhance the crush resistance of the cable and anti-rodent
  • High strength aramid yarn,high performance outer sheath
  • Small bending radius,light weight,flexibility,and friendly installation.
  • Good mechanical and environmental performance.
  • Flame retardant outer sheath provide good safety.

OPTICAL SPECIFICATION:

 G.652G.65550/125μm62.5/125μm
Attenuation@850nm  ≤3.0dB/km≤3.0dB/km
(+20℃)@1300nm  ≤1.0dB/km≤1.0dB/km
 @1310nm≤0.36dB/km≤0.36dB/km
 @1550nm≤0.22dB/km≤0.23dB/km
Bandwidth@850  ≥500MHZ·km≥200MHZ·km
(Class A)@1300  ≥1000MHZ·km≥600MHZ·km
Numerical Aperture   0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm≤1480nm

CABLE SPECIFICATION:

Fiber CountTight Diameter mmCable Diameter mmCable Weight Kg/kmTensile Strength Long/Short Term NCrush Resistance Long/Short Term N/100mBending Radius Static/Dynamic mm
10.6/0.9211300/750200/100020D/10D
10.6/0.9315300/750200/100020D/10D
