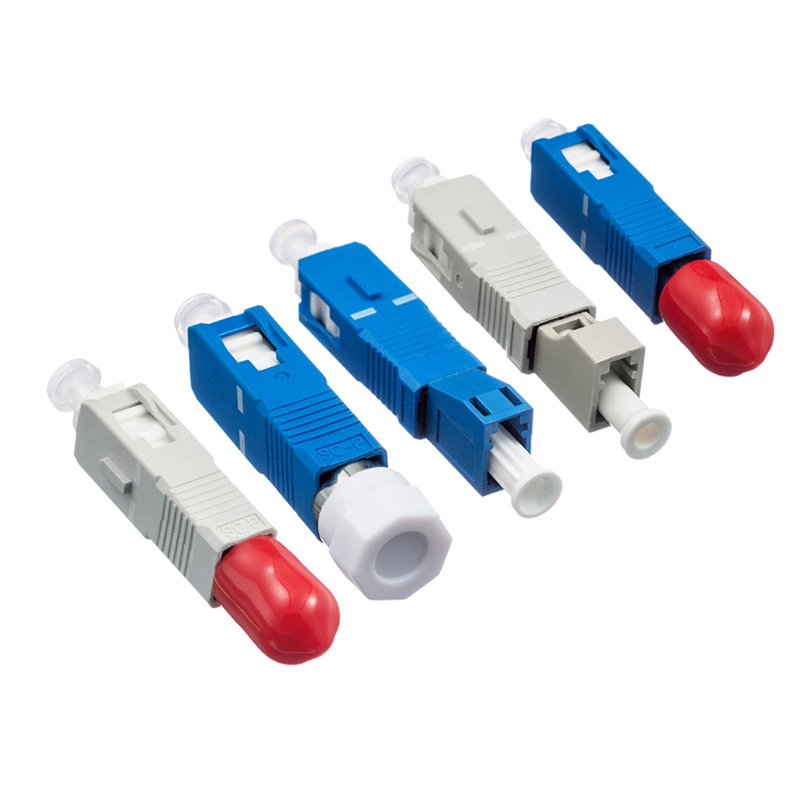

Male to Female Series Adapter
Male to Female Series Adapter
The male to female power adapter joins separated connectors. They are assembled in panels and allow connecting pigtails with patchcords. For every type of connector, there is equivalent type of adapter. Generally, there are 2 types of alignment sleeve within an adapter-phosphor bronze for multimode and ceramic for singlemode. The male to female adapters have the low insertion loss and back reflection loss. And it also allowed in the fiber optic telecommunications
Features:
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant
Applications:
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
Specification:
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||
