H Type GJXFHA FTTH Duct Drop Cable
H Type GJXFHA FTTH Duct Drop Cable

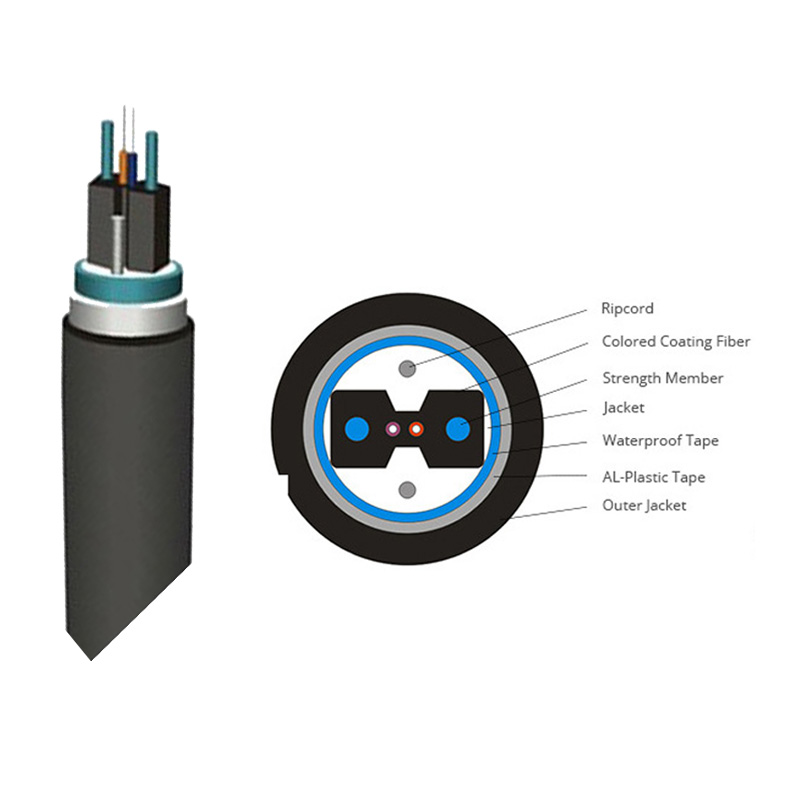

GJYXHA drop cable ftth(metal strengthened, Al-PE sheathed, indoor & outdoor duct communication fiber optic cable), is constructed as follows: put single-mode or multi-mode fiber(s) between two non-metallic strength member, extrude a layer of flame resistant PE as sheath, then apply two steel wires symmetrically at two sides, then a vertically wrap of water blocking tape, an Aluminum tape armor and a PE sheath.
FEATURES:
Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fieds:
Aerial, Duct
Structure Characters:
Metalic strengthen member(phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath
| cable code | fiber count | cable size(mm) | cable weight(kg/km) | tensile strenth long/short term(N) | crush resistance long/short term(N/100mm) | bending radius static dinamic (mm) |
| GJXFHA-1 | 1 | 7 | 47 | 30/60 | 300/1000 | 15/30 |
| GJXFHA-2 | 2 | 7 | 47 | 30/60 | 300/1000 | 15/30 |
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
