How is data transmitted through fiber optic cables?

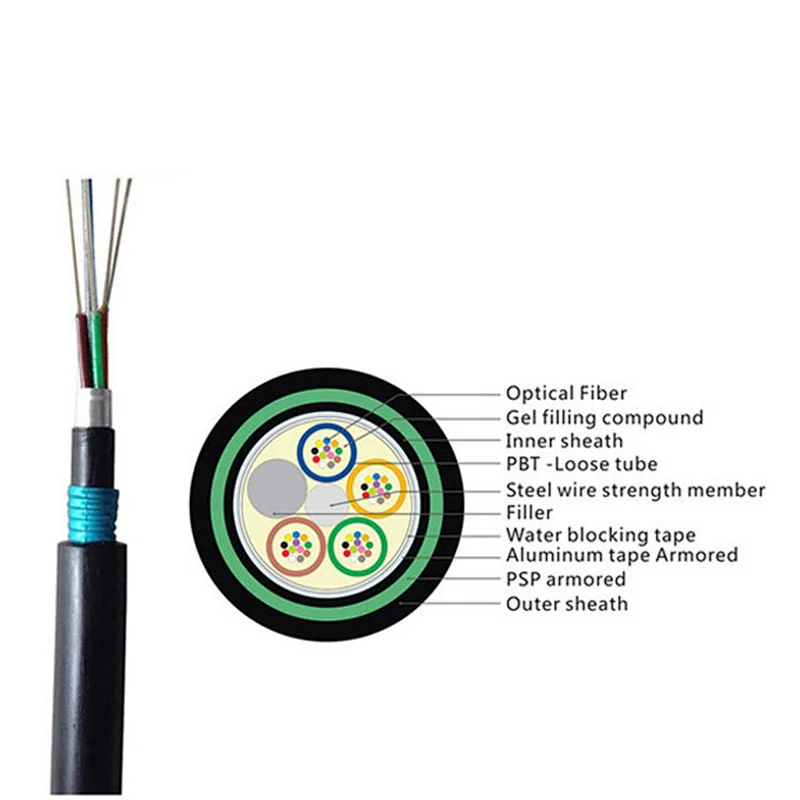

Data is transmitted through fiber optic cables using light signals. Here's a step-by-step explanation of how the process works:

- Data Encoding: The information to be transmitted, such as digital data, audio, or video, is converted into a binary format consisting of 1s and 0s.

- Light Generation: A device called a transmitter converts the binary data into corresponding light signals. This is typically done using a laser diode or light-emitting diode (LED). The light signals represent the 1s and 0s of the binary data.

- Signal Modulation: The light signals are modulated to carry the binary data. There are different modulation techniques used, such as intensity modulation or phase modulation, depending on the specific transmission system.

- Signal Transmission: The modulated light signals are then launched into the core of the fiber optic cable. The core is a thin strand of optically pure glass or plastic that serves as a waveguide for the light signals.

- Total Internal Reflection: As the light signals travel through the fiber optic cable, they undergo total internal reflection. This means that the light signals continuously bounce off the walls of the fiber core due to the difference in refractive index between the core and the cladding (outer layer) of the cable.

- Signal Propagation: The light signals propagate along the fiber optic cable in the form of optical pulses. These pulses maintain their integrity and travel long distances without significant loss of signal strength.

- Signal Reception: At the receiving end, a device called a photodetector or receiver detects the incoming light signals. The photodetector converts the light signals back into electrical signals, which can then be decoded and processed by the receiving equipment.

- Data Decoding: The electrical signals are decoded, and the binary data is reconstructed to its original form. This allows the recipient to retrieve the transmitted information accurately.

It's important to note that fiber optic cables can transmit data using different wavelengths of light simultaneously. This technique, known as wavelength division multiplexing (WDM), enables multiple channels of data to be transmitted over a single fiber, greatly increasing the capacity and efficiency of data transmission.

How to calculate data transmitted speed of fiber optic cables?

To calculate the data transmitted speed of fiber optic cables, you need to consider two factors: the bandwidth of the fiber optic cable and the amount of data transmitted over a specific time period.

- Here's the formula to calculate data transmitted speed:

Data Transmitted Speed = Data Size / Time

- Determine the Data Size: Identify the size of the data that has been transmitted. This can be measured in bits, bytes, kilobits (Kb), kilobytes (KB), megabits (Mb), megabytes (MB), gigabits (Gb), gigabytes (GB), etc.

- Measure the Time: Determine the time taken to transmit the data. This can be measured in seconds, milliseconds, minutes, hours, or any appropriate time unit.

- Calculate the Data Transmitted Speed: Divide the data size by the time taken to transmit the data. This will give you the data transmitted speed.

For example, let's say you want to calculate the data transmitted speed for transmitting a 1-gigabyte (GB) file over a fiber optic cable that took 10 seconds to transmit:

Data Size = 1 GB = 1,073,741,824 bytes (assuming 1 GB = 1,073,741,824 bytes)

Time = 10 seconds

Data Transmitted Speed = Data Size / Time

Data Transmitted Speed = 1,073,741,824 bytes / 10 seconds = 107,374,182.4 bytes per second

You can convert the result to the desired unit of measurement (e.g., megabits per second, gigabits per second) based on your requirements.

It's important to note that the actual data transmitted speed can be affected by factors such as the bandwidth of the fiber optic cable, network congestion, and the capabilities of the networking equipment being used.

The maximum data transmission speed depends on various factors including the type of fiber optic cable and the technology used for data transmission. Currently, the most commonly deployed fiber optic technology for high-speed data transmission is known as "dense wavelength division multiplexing" (DWDM).

In practical applications, modern fiber optic systems can achieve speeds ranging from 10 gigabits per second (Gbps) to 400 gigabits per second (Gbps) or even higher. However, advancements in fiber optic technology continue to push the limits of data transmission speeds.

For example, commercial systems based on 100 gigabits per second (100 Gbps) transmission rates have become prevalent in recent years, enabling faster data transfers in various applications. Additionally, there are ongoing developments in research and industry to achieve even higher data rates, such as 400 gigabits per second (400 Gbps) and 1 terabit per second (1 Tbps) transmission.

It's important to note that achieving these maximum data transmission speeds requires not only advanced fiber optic cables but also sophisticated networking equipment and signal processing technologies to support the high-speed data flow.

How to calculate fiber optic cable loss?

To calculate fiber optic cable loss, you need to consider two main factors: the length of the cable and the attenuation (loss) per unit length.

- Here's the formula to calculate fiber optic cable loss:

Total Cable Loss = Attenuation per Unit Length × Cable Length

- Determine the Attenuation per Unit Length: The attenuation per unit length is typically provided by the manufacturer and is measured in decibels per kilometer (dB/km) or decibels per meter (dB/m). It represents the amount of signal loss that occurs in the fiber optic cable over a specific distance.

- Measure the Cable Length: Determine the length of the fiber optic cable over which you want to calculate the loss. This can be measured in kilometers (km), meters (m), or any appropriate unit of length.

- Calculate the Total Cable Loss: Multiply the attenuation per unit length by the cable length. This will give you the total cable loss.

For example, let's say you have a fiber optic cable with an attenuation of 0.3 dB/km and you want to calculate the loss for a cable length of 2 kilometers:

Attenuation per Unit Length = 0.3 dB/km

Cable Length = 2 km

Total Cable Loss = Attenuation per Unit Length × Cable Length

Total Cable Loss = 0.3 dB/km × 2 km = 0.6 dB

The total cable loss in this case would be 0.6 decibels.

It's important to note that fiber optic cable loss can be cumulative if there are multiple cable segments or connectors in the link. In such cases, you would need to calculate the individual losses for each segment or connector and then sum them up to obtain the total loss for the entire fiber optic link.
