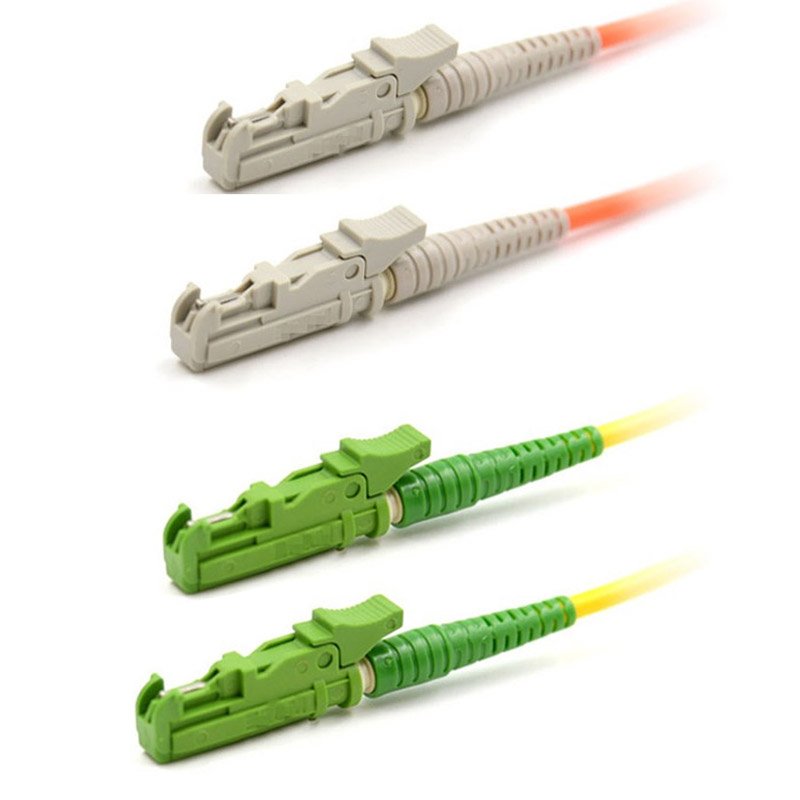

E2000 Series Fiber Patch cords
E2000 Series Fiber Patch cords
A Cost-effective solution that provides high bandwidth and transmission rates over longer distances. This high-quality singlemode fiber patch cords is specifically designed using SMF-28e fiber for ethernet applications. This cable is ROHS compliant. Each connection has a greater durability in resisting pulls, strains and impacts from cabling installs. Each e2000 patch cord is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 single mode fiber, immune to electrical interference..
APPLICATION:
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
FEATURE:
Quick, highly repetable, low-loss connections
100% Optically inspected and tested for insertion loss
Pull-Proof Jacket
Immune to electrical interference
ROHS Compliant
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameter
Hybrid patch-cords are available upon request
SPECIFICAION:
Connector type |
| FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | ||
Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
Cable diameter | mm | 3.0, 2.0, 0.9 | ||
Operating wavelength | nm | 1310, 1490,1550 | ||
Core Type |
| G.652, G655, G657, OM1, OM2, OM3, OM4 | ||
Ferrule End-face |
| PC | UPC | APC |
Insertion Loss | dB | ≤0,2 | ||
Max. Insertion Loss | dB | ≤0,3 | ||
Return Loss | dB | ≥45 | ≥50 | ≥55 |
Operation Temperature | C | -40 ~ +80 | ||
Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
Durability |
| ≤0.1dB change, 500 Cycles | ||
Sheath Color |
| SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | ||
Package |
| Each patchcord is packaged individually and individually test certification. | ||
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
