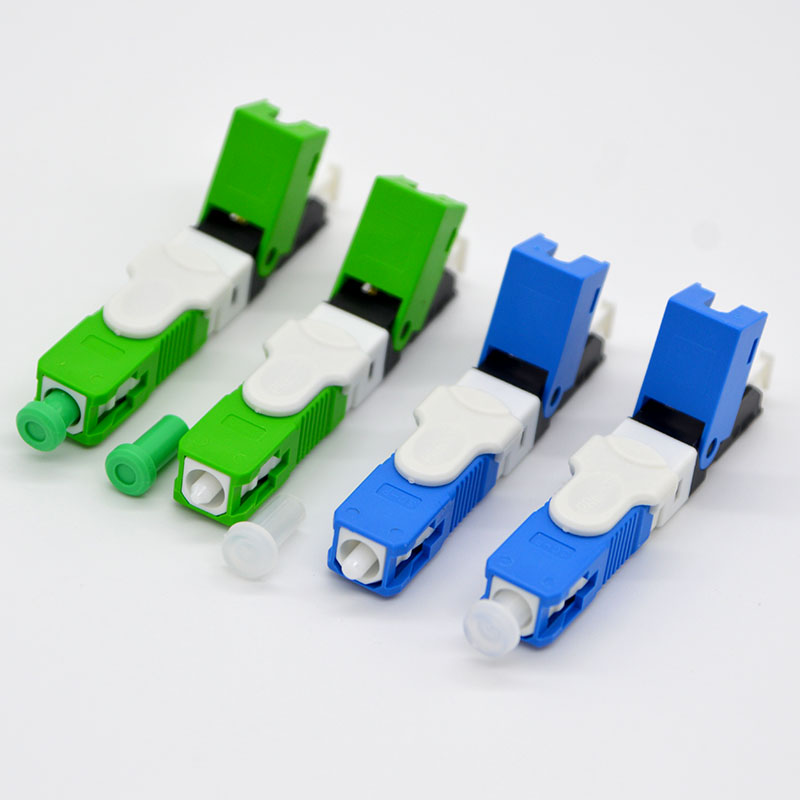

FTTH Pre-Polished Field Assebly Fast Connector

FTTH Pre-Polished Field Assebly Fast Connector

The ftth fast connector is the most popular type of fast connector in the market, which features a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel. This sc fast connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field. This SC No Epoxy Pre-Polished Mechanical Connector is perfect for quick field termination. Requiring very little time and minimal training, this ftth fast connector is optimal for the field technician with any level of experience. Listed below are the simple steps for a quick field termination using our Pre-Polished Mechanical Connectors.

FEATURES

1. Embedded fiber structure.

There is no embedded fiber and matching paste inside the device. After installing and clamping optical fiber, it can check the optical fiber end with magnifying glass and avoid it. The loss of optical fiber connection is large. The axial band positioning mechanism, during the clamping process, the optical fiber will not move forward.

2. Good reliability of optical fiber clamping

The fiber gripper components are made of elastic metal materials, and there is no problem of aging of the plastic elements. Temperature change to fiber clamping force No effect. In addition, the device has an anti-loose structure inside the device, the device anti vibration, and the anti-drop performance is very good.

3. Good connection stability

The optical fiber butt joint has axial adhesion force. When the optical fiber is butt joint, the two fiber end face clearance is almost zero, so the connection loss is usually less than or equal to 0.3dB. Even less than or equal to 0.1db. because of no use of optical fiber matching paste, there is no match paste loss, pollution has been aging. In addition, the reliability of the optical fiber clamping is very good and is determined. The continuity is very good.

4. Small Insertion Loss

Since the device is designed according to the non-embedded optical fiber structure, the optical fiber only has one contact point, so the connection loss is generally less than that of the existing optical fiber fast connector.

5. the online tensile force of the optical fiber fast connector has no effect on the connection loss. The axial force of the device directly affects the shell of the device, and the ceramic pin of the connector is not pulled. It does not affect the butt effect of the fiber, so it has no effect on the loss of the connector.

6. Simple to install

It does not need special construction tools to complete the installation, also has good maintenance and simple installation and maintenance. The installation speed the device has a unique optical fiber guiding mechanism, and it is very quick and convenient to wear optical fiber.

APPLICATION:
