GJFJV Indoor Distribution Bundle Cable

GJFJV Indoor Distribution Bundle Cable

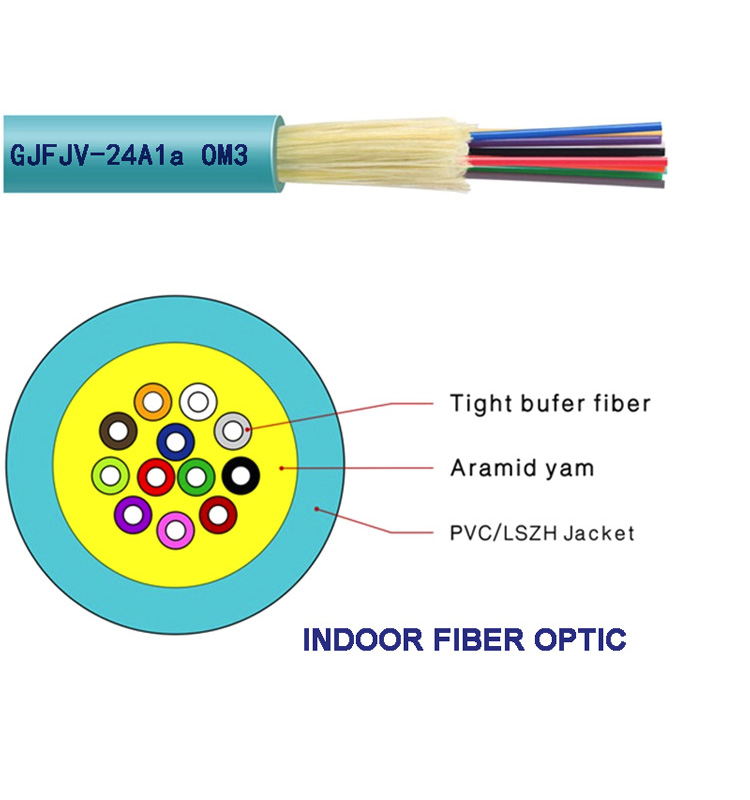

The distribution fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket. It can be adopted to indoor distribution. It is suitable for communication equipment served.
FEATURES:
900μm tight buffer fiber,aramid yarn,flame-retardant jacket;
Excellent stripping performance of tight buffer fiber;
Suited to SM fiber and MM fiber(50μm and 62.5 μm).
Hight strength kevlar yarn member.
More tight buffered design.
Round construction.
Easy to strip.
APPLICATION:
Adopted to indoor distribution.
As pigtail of communication equipment.
Suitable for communication equipment served.
Suitable for floor connection.
Technical Parameters:
| Cable Count | Out sheath Diameter | Innter sheath diameter | Weight |
| Core | (mm) | (mm) | (kg) |
| 2 | 7 | 2 | 45 |
| 4 | 7 | 2 | 47 |
| 6 | 8.3 | 2 | 64 |
| 8 | 9.5 | 2 | 88 |
| 12 | 11.5 | 2 | 105 |
| 24 | 13.5 | 2 | 142 |
