Indoor Duplex Zipcord Cable
Indoor Duplex Zipcord Cable

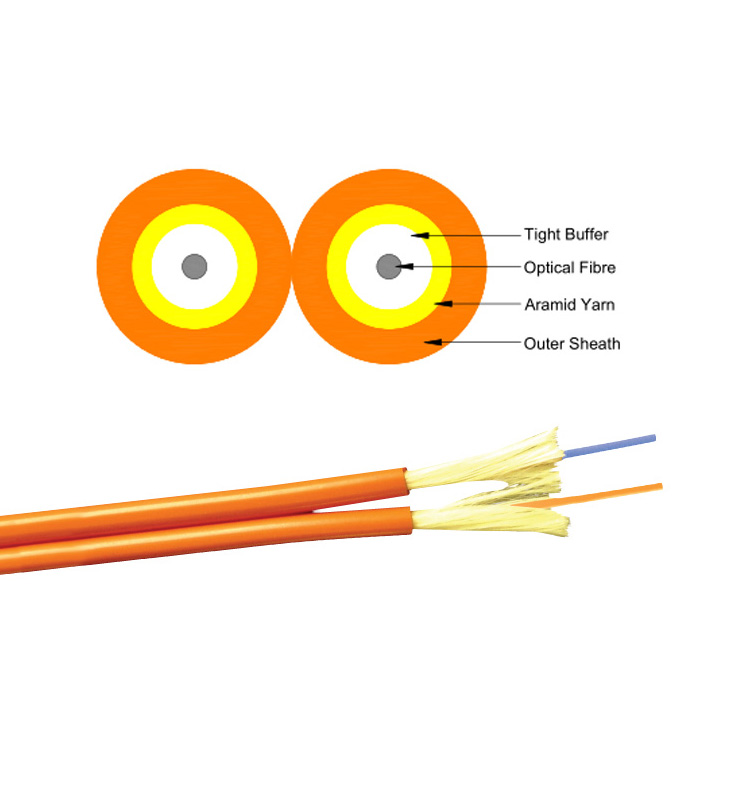

The zipcord cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket. A duplex fiber optic cable consists of two strand fibers of glass or plastic, and it can be regarded as two simplex cables. This duplex zipcord cable is carefully structured in a zip-cord arrangement, which is most often used for duplex communication between devices where require simultaneous, bi-directional data transfer. (One fiber transmits data one direction and another fiber transmits data in the opposite direction.) Larger workstations, fiber switches and servers, fiber modems, and similar hardware tends to require duplex fiber cable. Duplex fiber is also available in single mode duplex fiber optic cable and multimode duplex fiber optic cable. Half duplex and full duplex are two types of fiber optic duplex cables that are used in different data transmission applications.
Features:
- Choice of Fibre Type.
- Choice of Outer Diameter.
- High Strength Aramid Yarn Strength Members.
- Easy to Strip.
- Choice of Outer Sheath Material & color.
Temperature Characteristics:
1.Operate temperature range: -20oC to +60oC .
2.Storage temperature range: -20oC to +60oC .
Zipcord Optical Fiber Cable | ||||
Outer Diameter (mm) | 1.6x3.3 | 1.8x3.7 | 2.0x4.1 | 2.8*5.7 |
Normal Weight (kg/km) | 5.7 | 6.7 | 8.2 | 13.2 |
Long term tensile strength (N) | 80 | 80 | 100 | 160 |
Short term tensile strength (N) | 160 | 160 | 200 | 300 |
Minimum Static bending radius | 10H | |||
Minimum Dynamic bending radius | 20H | |||
Long term crush resistance (N) | 500 | |||
Short term crush resistance (N) | 100 | |||

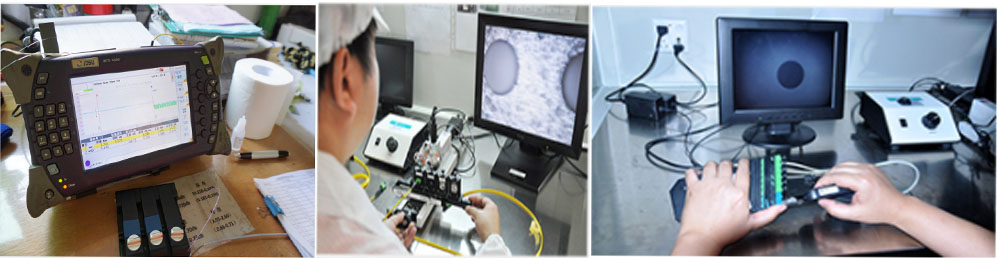

TESTING
CERTIFICATION
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO9001 Certified factor.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few produc is 7- 10days.
