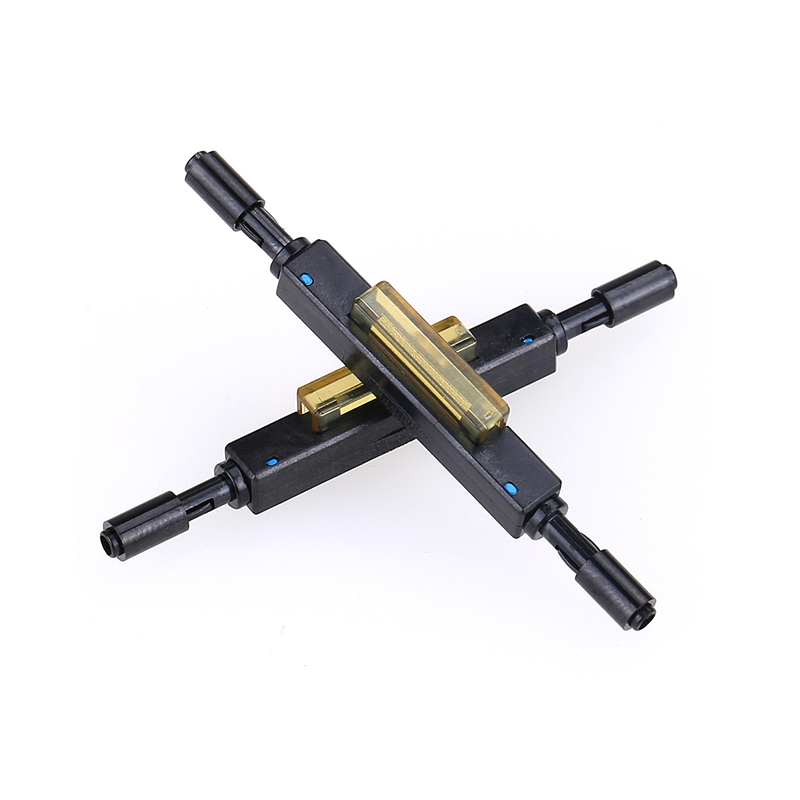

FTTH Fiber Optic Mechanical Splicer

FTTH Fiber Optic Mechanical Splicer

The fiber optic mechanical splicer is applicated for It is suitable for single-mode and multi-mode. And it is suitable for any combination of 0.25mm optical fiber and 0.9mm optical fiber. The operation is simple and quick, no fixture tools are required, and the required time is short. It does not rely on the flatness of the fiber end face cutting, which greatly reduces the requirements for the proficiency of the operator.

Specification

• Color: Black
• Material: Plastic
• Applicable scope: 0.25 mm and 0.90 mm optical fiber
• Fiber diameter: 125um (657A and 657B)
• Tight cladding diameter: 250um and 900pm
• Applicable mode: single-mode and multi-mode
• Operating time: about 10s (without fiber processing)
• Insertion loss: ≤0.15dB
• Return loss: ≤-50dB
• Class fiber tightening force: >5 N
• Tight-pack fixing force: >8 N
• Operating temperature: -40~ +75℃
• Repeated use (10 times): IL≤0.2dB RL≤5dB

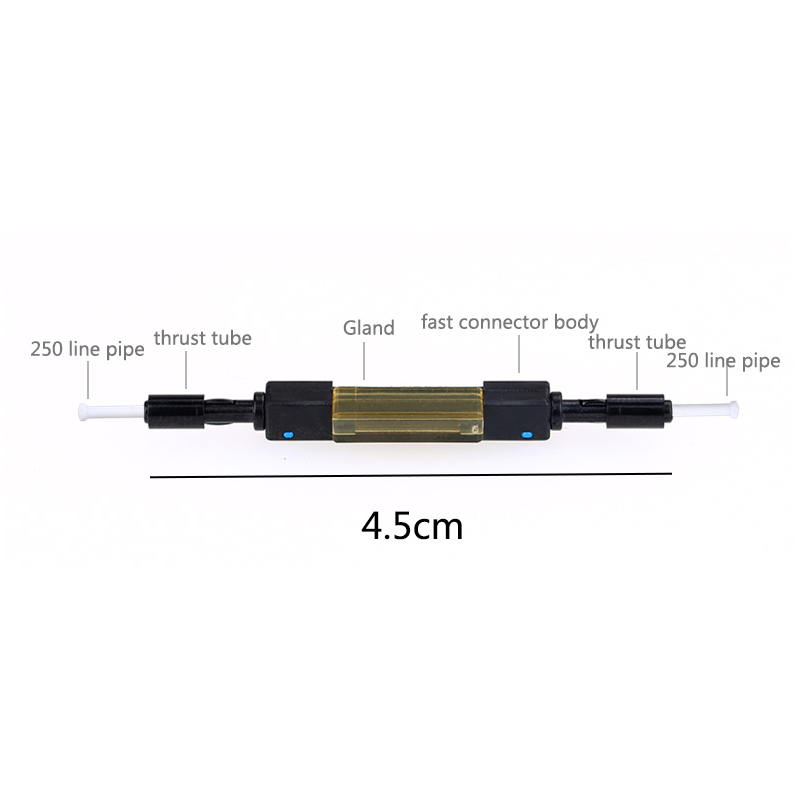

• Size: About 5cm/1.97inch(L)

Features

• Applicability:Suitable for any combination of 0.25mm optical fiber and 0.9mm optical fiber.
• Simple operation:The operation is simple and quick, no fixture tools are required, and the required time is short.
• Good airtightness:Box structure design, good airtightness, not easy to lose the liquid, and strong weather resistance.
• Applicable mode:V groove docking technology is adopted, which is suitable for single-mode and multi-mode fiber connections.
• Low installation requirements:It does not rely on the flatness of the fiber end face cutting, which greatly reduces the requirements for the proficiency of the operator.

SPECIFICATION:

Testing

All products have passed professional tests in order to providing better quality guarentee.

Certification

After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
