Indoor Simplex Cable
Indoor Simplex Cable

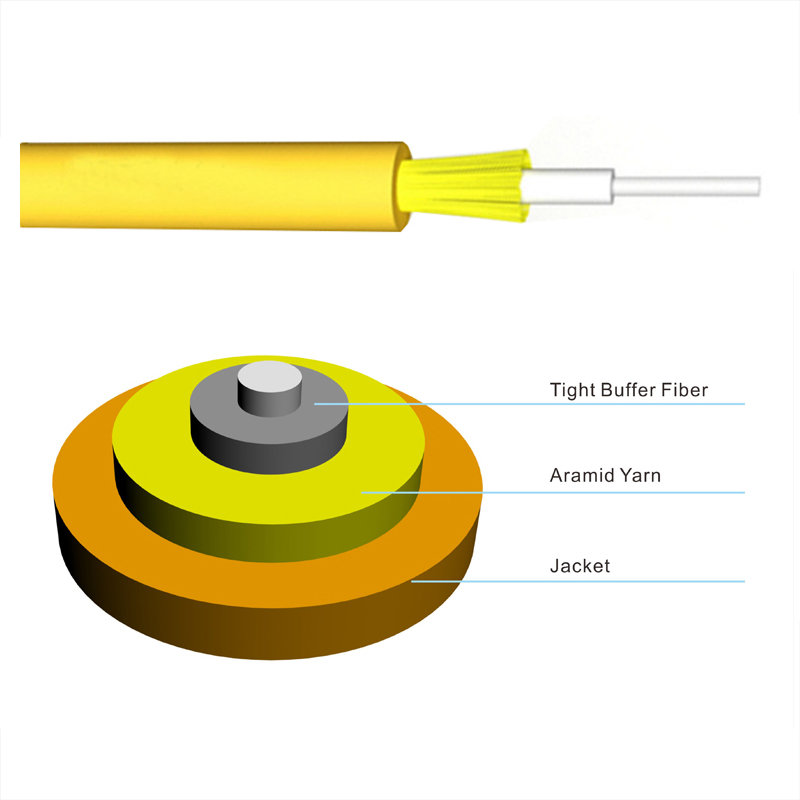

The simplex fiber cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket. We use high strength aramid yarn which has a longer lifeHave a longer life. The Operate temperature range of zipcord cable is -20oC to +60oC.
FEATURES:
- Choice of Fibre Type.
- Choice of Outer Diameter.
- High Strength Aramid Yarn Strength Members.
- Easy to Strip.
- Choice of Outer Sheath Material & color.
Temperature Characteristics:
1.Operate temperature range: -20oC to +60oC .
2.Storage temperature range: -20oC to +60oC .
Zipcord Optical Fiber Cable | ||||
Outer Diameter (mm) | 1.6x3.3 | 1.8x3.7 | 2.0x4.1 | 2.8*5.7 |
Normal Weight (kg/km) | 5.7 | 6.7 | 8.2 | 13.2 |
Long term tensile strength (N) | 80 | 80 | 100 | 160 |
Short term tensile strength (N) | 160 | 160 | 200 | 300 |
Minimum Static bending radius | 10H | |||
Minimum Dynamic bending radius | 20H | |||
Long term crush resistance (N) | 500 | |||
Short term crush resistance (N) | 100 | |||
