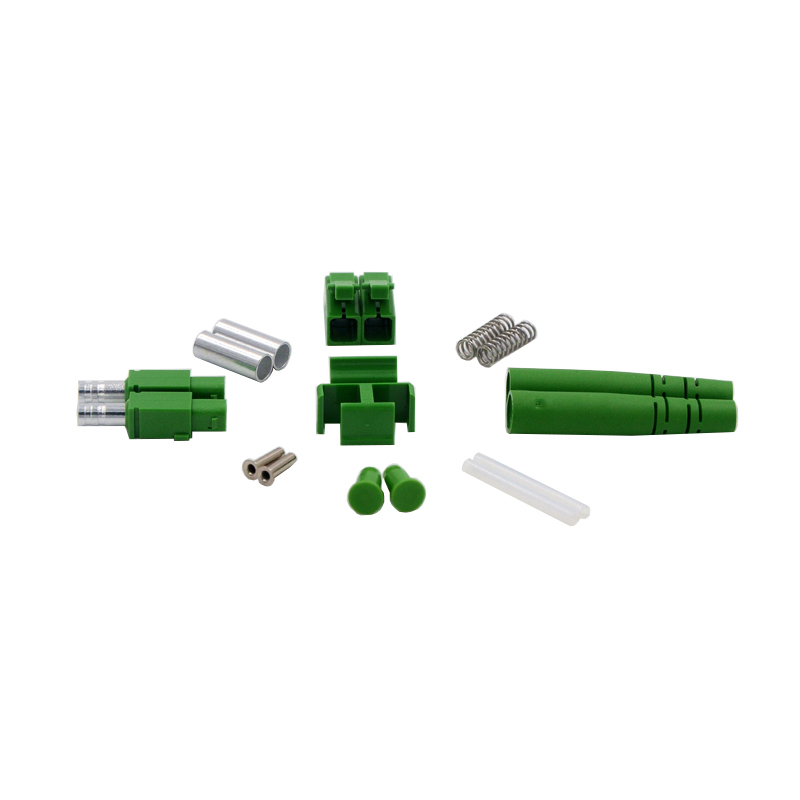

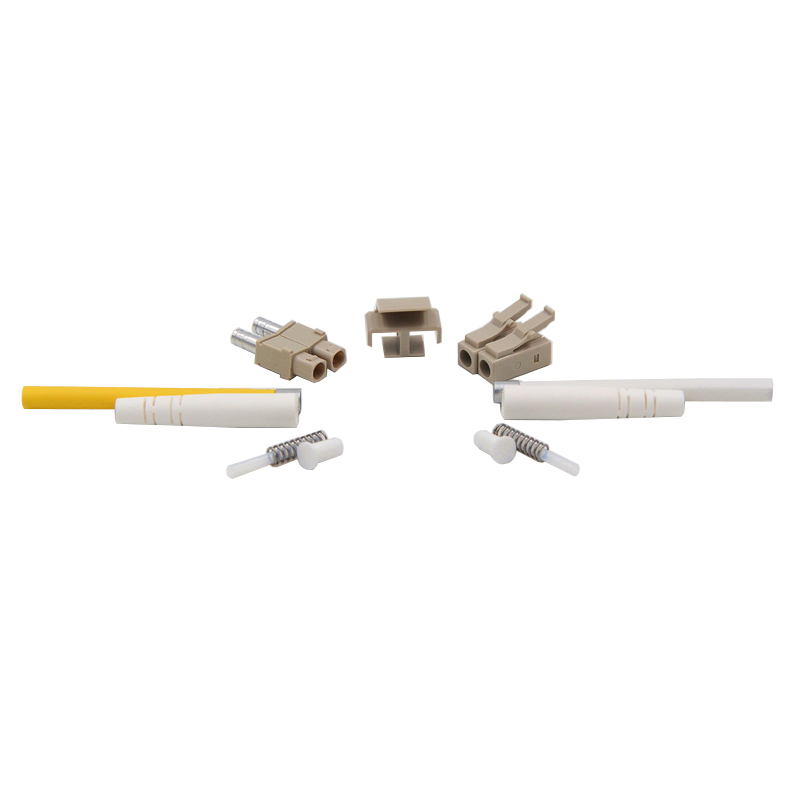

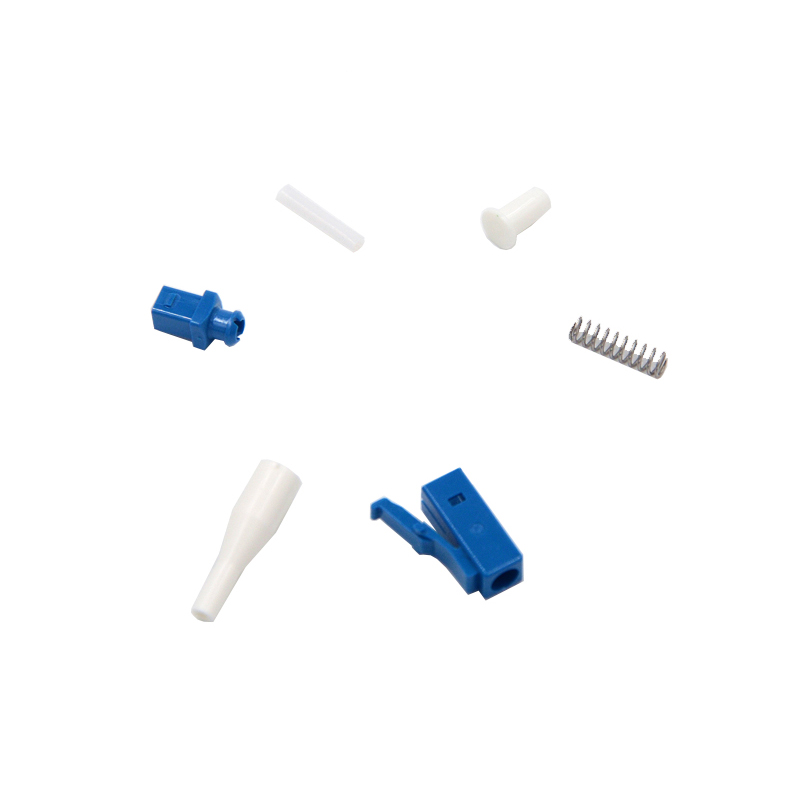

LC Series Connector
LC Series Connector
The lc fast connector has good temperature stabilization and high wearable.The connector is comprised of a nickel plated brass body. The lc fast connector is a component to terminate the end of fiber optical cable. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, it has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
APPLICATIONS:
These connectors are suitable for 900µm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical performance.
FEATURES:
- High size precision.
- Good repeatability.
- Good changeability.
- Good temperature stabilization.
- High wearable.
PRODUCT PARAMETERS:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Ferrule hole sizes | 125.2-126.2um | 125-128um | ||||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
