ST Series Connector
ST Series Connector

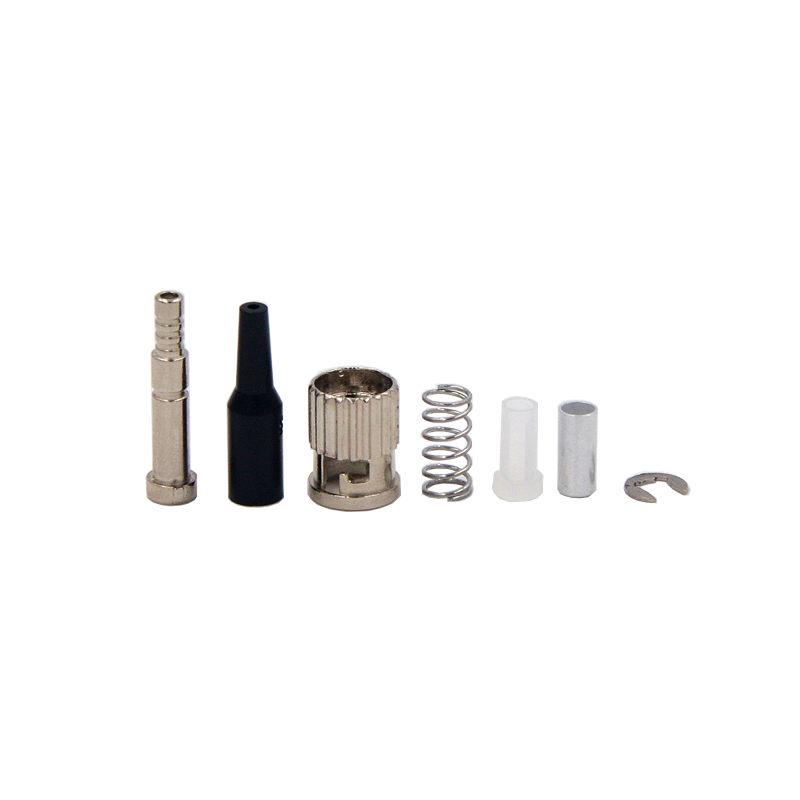

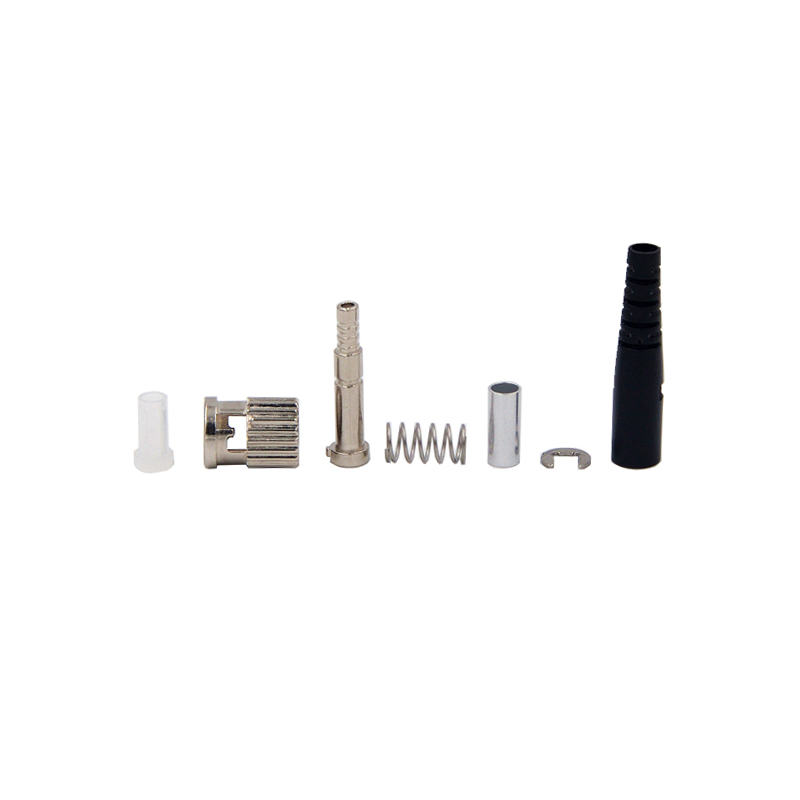

The st cable connectorhas a screw thread fitting into the adapter to provide a secure connection. The st connector is comprised of a nickel plated brass body and a rubber boot. ST connector is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, st cable connector has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
APPLICATIONS:
These connectors are suitable for 900µm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical performance.
FEATURES:
High size precision.
Good repeatability.
Good changeability.
Good temperature stabilization.
High wearable.
PRODUCT PARAMETERS:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Ferrule hole sizes | 125.2-126.2um | 125-128um | ||||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
