SC Series Connector
SC Series Connector

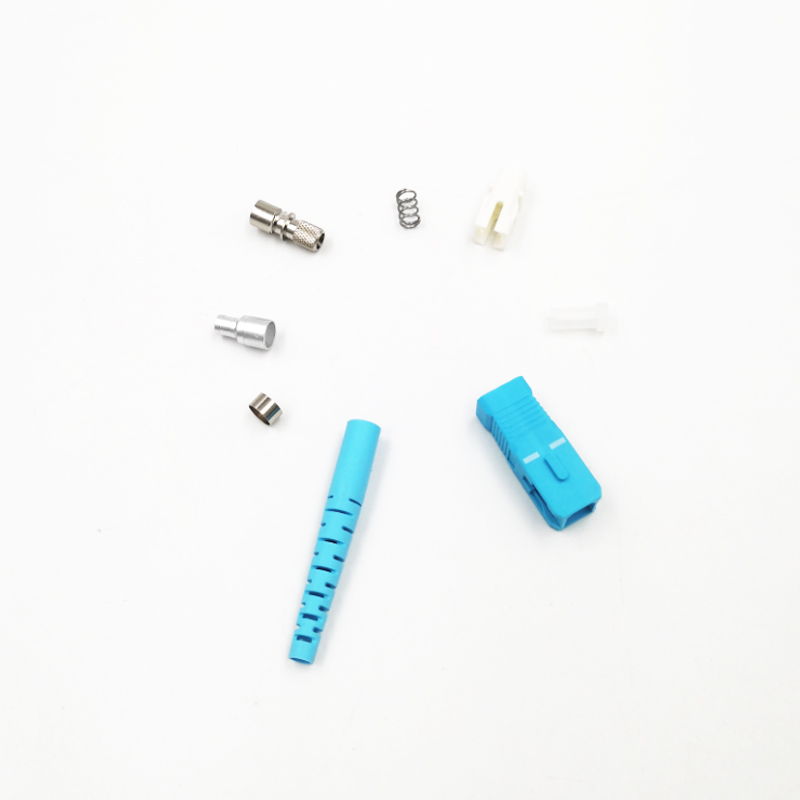

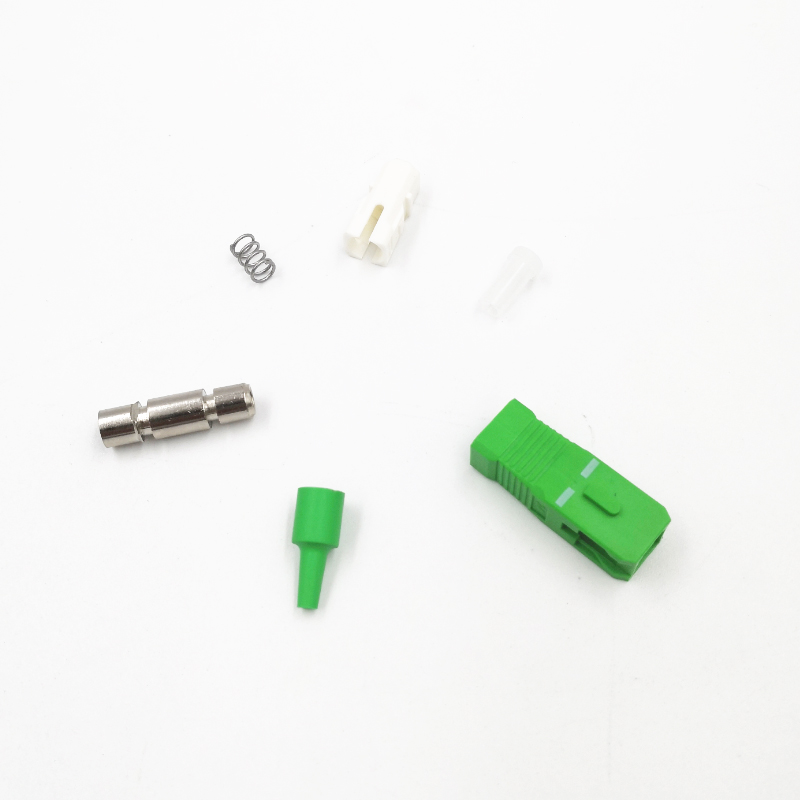

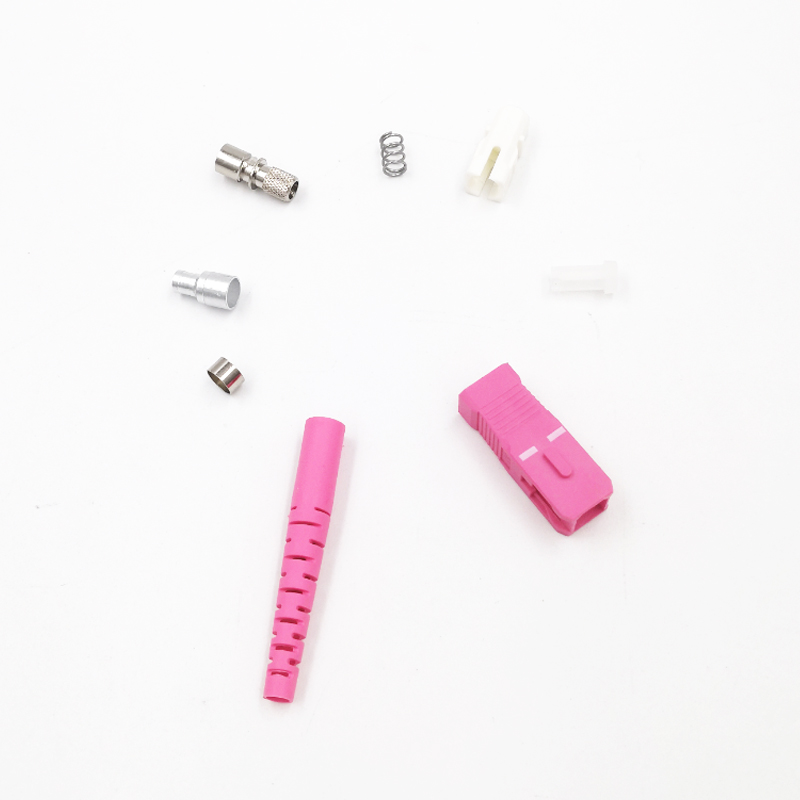

The sc type connector has high size precision and good temperature stabilization. The sc connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assem bly plus a crimp-over sleeve and rubber boot. SC connector is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
APPLICATIONS:
These connectors are suitable for 900µm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical performance.
FEATURES:
- High size precision.
- Good repeatability.
- Good changeability.
- Good temperature stabilization.
- High wearable.
PRODUCT PARAMETERS:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Ferrule hole sizes | 125.2-126.2um | 125-128um | ||||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
