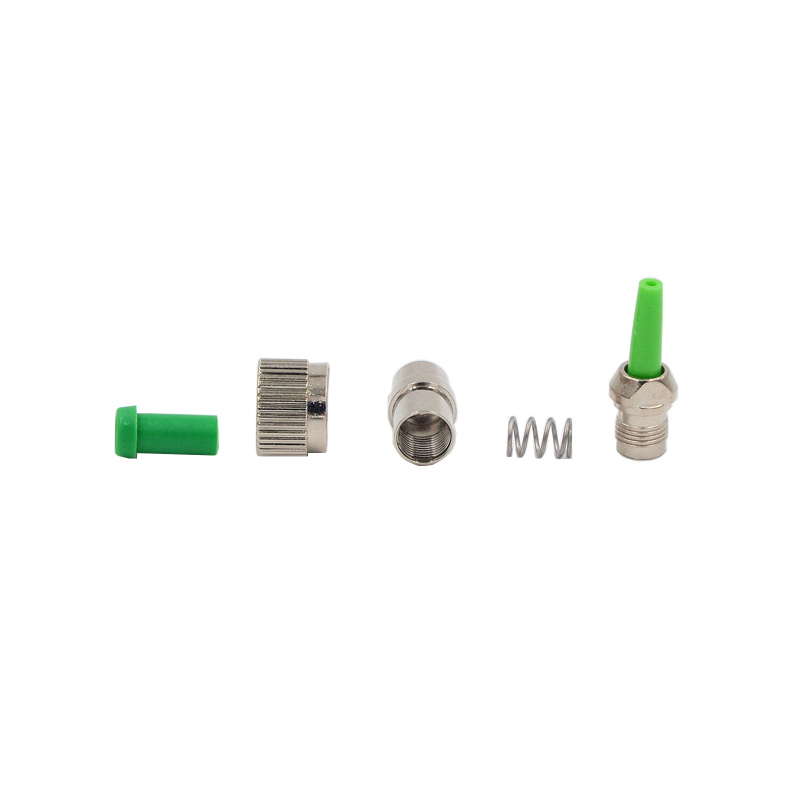

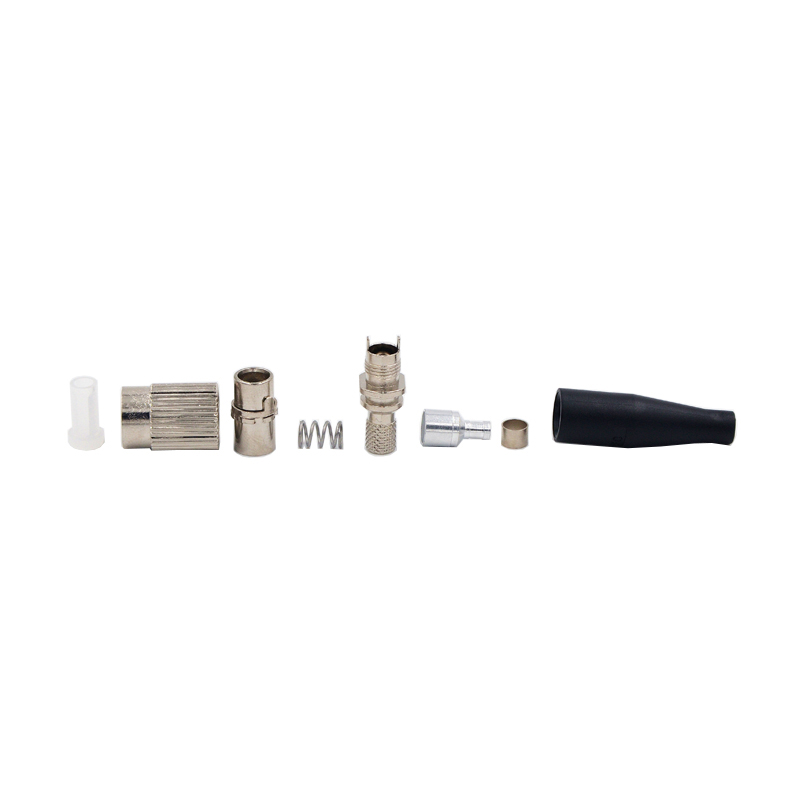

FC Series Connector
FC Series Connector
The fc optical connector is precision made and manufactured to demanding specifications. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, fc optical connector has high size precision and good repeatability and has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
APPLICATIONS:
These connectors are suitable for 900µm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical performance.
FEATURES:
High size precision.
Good repeatability.
Good changeability.
Good temperature stabilization.
High wearable.
PRODUCT PARAMETERS:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Ferrule hole sizes | 125.2-126.2um | 125-128um | ||||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few product is 7- 10 days.
