Mini Distribution Fiber Optic Cable
GJFV
Mini Distribution Fiber Optic Cable features multiple 250 μm optical fibers reinforced with aramid yarn and protected by a compact PVC or LSZH outer jacket. Supporting 2–24 fibers in a small 3.0–3.5 mm cable diameter, it is designed for high-density indoor fiber connectivity, MPO/MTP cable assemblies and compact fiber distribution applications.
FASOCOM Mini Distribution Fiber Optic Cable is a compact multi-fiber cable designed for high-density indoor fiber connectivity and cable assembly applications. Multiple 250 μm optical fibers are bundled together with aramid yarn and protected by a single outer jacket, providing high fiber density in a small and lightweight cable construction.
Available in 2–24 fiber configurations with PVC or LSZH outer jackets, the cable combines compact dimensions with reliable tensile protection and flexible handling. Its small form factor makes it particularly suitable for MPO/MTP trunk cable assemblies, high-density patching, data center connectivity and other indoor applications where installation space is limited.
Available in 2–24 fiber configurations with PVC or LSZH outer jackets, the cable combines compact dimensions with reliable tensile protection and flexible handling. Its small form factor makes it particularly suitable for MPO/MTP trunk cable assemblies, high-density patching, data center connectivity and other indoor applications where installation space is limited.

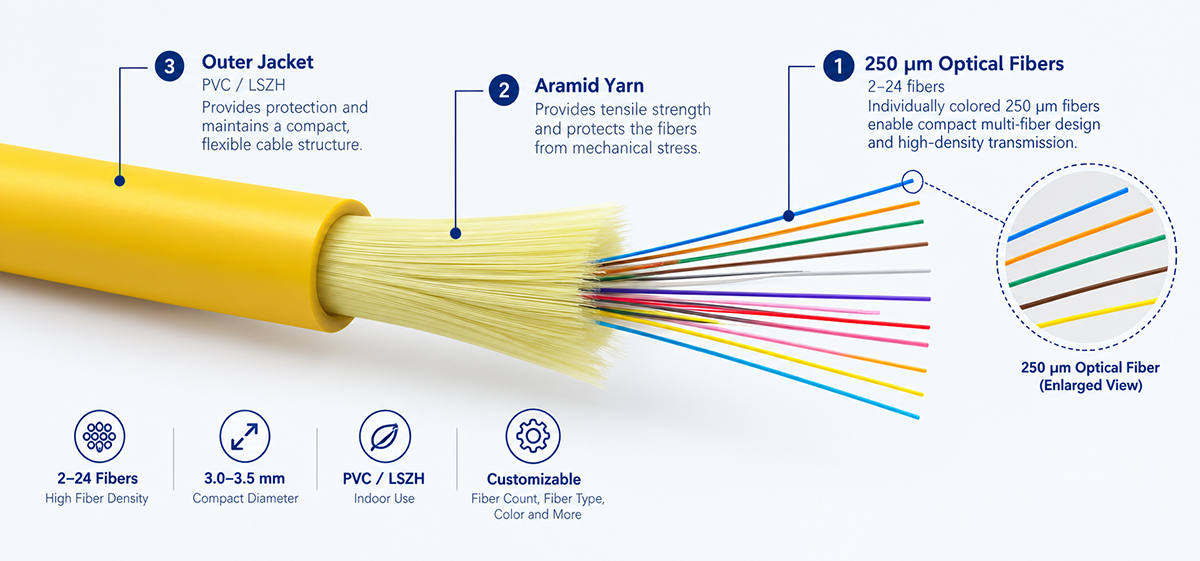

Cable Construction
1. Optical Fibers
Multiple 250 μm optical fibers provide compact multi-fiber transmission within a small cable diameter and are available in different fiber counts and fiber types.
Multiple 250 μm optical fibers provide compact multi-fiber transmission within a small cable diameter and are available in different fiber counts and fiber types.
2. Aramid Yarn
Aramid yarn surrounds and reinforces the optical fibers, providing tensile strength and protecting the fibers from mechanical stress.
Aramid yarn surrounds and reinforces the optical fibers, providing tensile strength and protecting the fibers from mechanical stress.
3. Outer Jacket
A compact PVC or LSZH outer jacket protects the internal fibers and strength members while maintaining a small and flexible cable profile for high-density indoor connectivity.
A compact PVC or LSZH outer jacket protects the internal fibers and strength members while maintaining a small and flexible cable profile for high-density indoor connectivity.
Key Features
• Compact multi-fiber construction with 250 μm optical fibers.
• Supports 2–24 fibers in a small cable diameter.
• 3.0 mm cable diameter for 2–12 fibers and 3.5 mm for 14–24 fibers.
• Aramid yarn provides reliable tensile reinforcement.
• PVC and LSZH outer jacket options are available.
• Small and lightweight construction supports high-density fiber cabling.
• Suitable for MPO/MTP trunk cable assemblies and other multi-fiber connectivity applications.
• Fiber type, fiber count, jacket material, color and cable length can be customized.
• Supports 2–24 fibers in a small cable diameter.
• 3.0 mm cable diameter for 2–12 fibers and 3.5 mm for 14–24 fibers.
• Aramid yarn provides reliable tensile reinforcement.
• PVC and LSZH outer jacket options are available.
• Small and lightweight construction supports high-density fiber cabling.
• Suitable for MPO/MTP trunk cable assemblies and other multi-fiber connectivity applications.
• Fiber type, fiber count, jacket material, color and cable length can be customized.
