Zipcord Duplex Fiber Optic Cable
GJFJV DX
Zipcord Duplex Fiber Optic Cable consists of two individually jacketed simplex cable units joined by a web, providing a compact and separable two-fiber construction. Each unit contains a tight buffered optical fiber reinforced with aramid yarn and protected by a PVC or LSZH outer jacket, making the cable suitable for indoor fiber connectivity, patch cord assembly and equipment connections.
FASOCOM Simplex Fiber Optic Cable consists of a single tight buffered optical fiber reinforced with aramid yarn and protected by an outer jacket. Its compact and flexible construction provides reliable mechanical protection while allowing easy handling, stripping and termination.

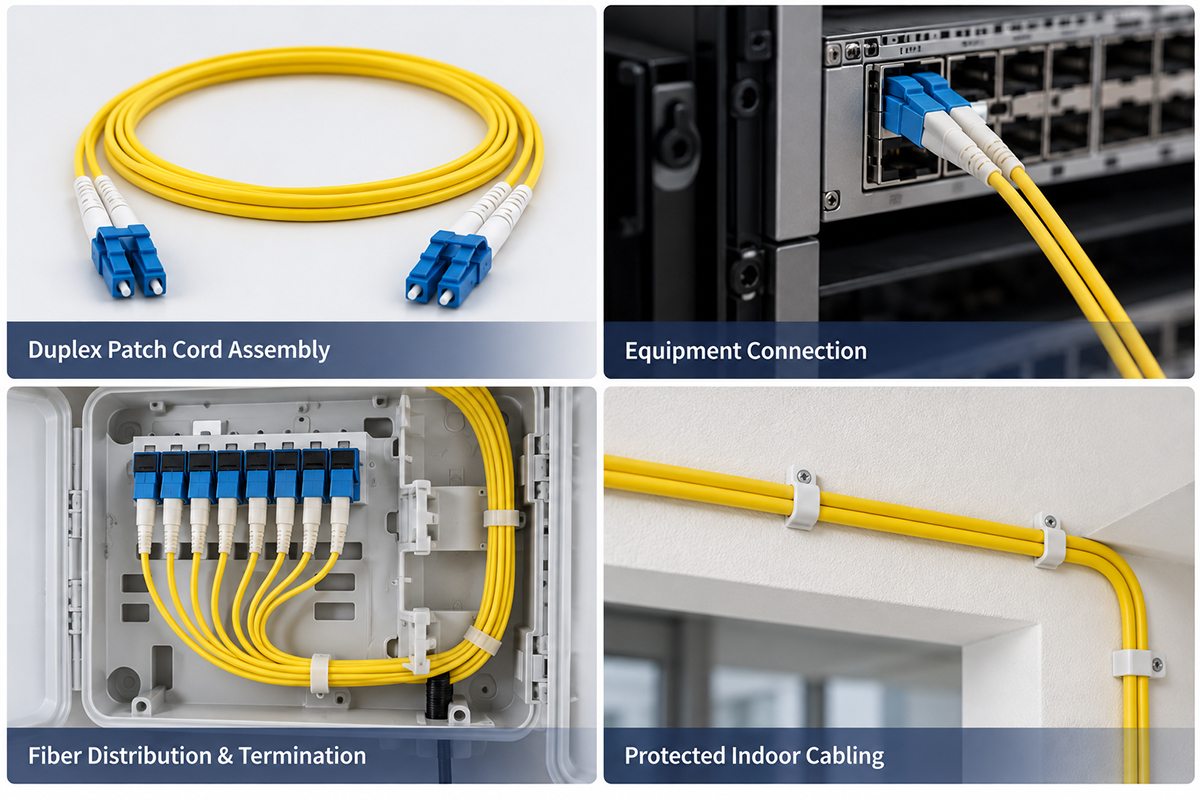

Available with single-mode and multimode fibers, 600 μm or 900 μm tight buffer options, and PVC or LSZH outer jackets, the cable is suitable for indoor fiber connectivity, patch cord and pigtail manufacturing, equipment connections and other indoor optical communication applications.
Available with single-mode and multimode fibers, 600 μm or 900 μm tight buffer options, and PVC or LSZH outer jackets, the cable is suitable for indoor fiber connectivity, patch cord and pigtail manufacturing, equipment connections and other indoor optical communication applications.

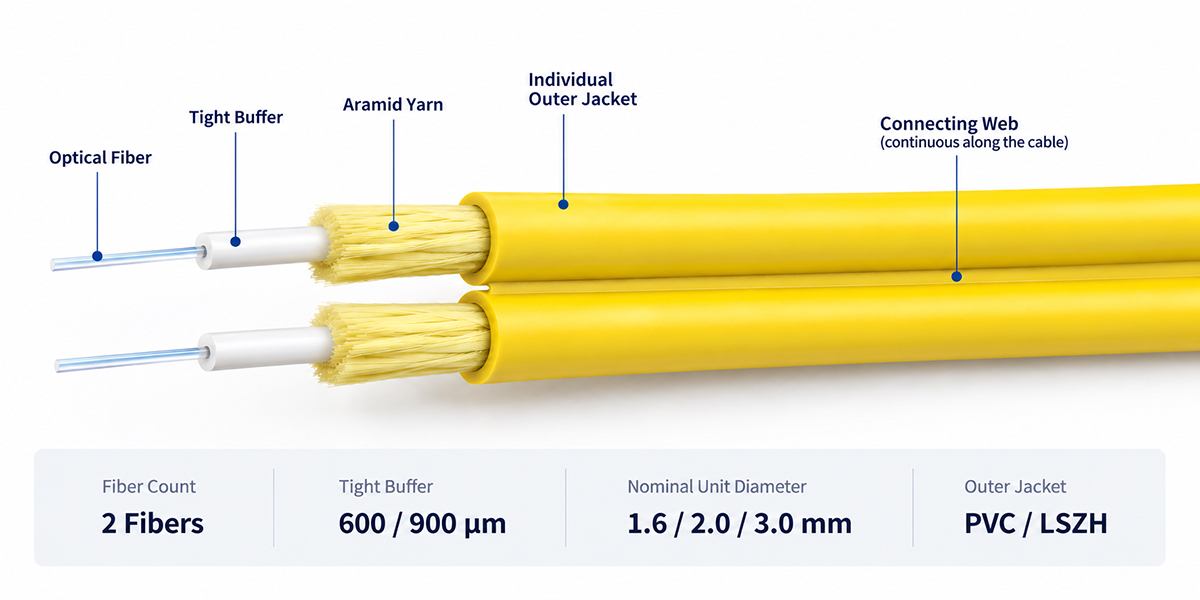

Cable Construction
1. Tight Buffered Fiber
Each simplex unit contains a single-mode or multimode optical fiber with a 600 μm or 900 μm tight buffer for improved handling, stripping and mechanical protection.
Each simplex unit contains a single-mode or multimode optical fiber with a 600 μm or 900 μm tight buffer for improved handling, stripping and mechanical protection.
2. Aramid Yarn
High-strength aramid yarn surrounds each tight buffered fiber to provide tensile strength and protect the optical fiber from mechanical stress.
High-strength aramid yarn surrounds each tight buffered fiber to provide tensile strength and protect the optical fiber from mechanical stress.
3. Individual Outer Jacket
Each simplex unit is independently protected by a PVC or LSZH outer jacket, providing mechanical protection and allowing the two units to function independently after separation.
Each simplex unit is independently protected by a PVC or LSZH outer jacket, providing mechanical protection and allowing the two units to function independently after separation.
4. Connecting Web
The two individually jacketed simplex units are joined by a thin connecting web, forming the zipcord structure and allowing easy separation when required.
The two individually jacketed simplex units are joined by a thin connecting web, forming the zipcord structure and allowing easy separation when required.
Key Features
• Two individually jacketed simplex units form a compact duplex zipcord construction.
• Separable web design allows the two simplex units to be easily divided when required.
• 600 μm and 900 μm tight buffer options are available for different cable designs.
• High-strength aramid yarn provides reliable tensile protection for each fiber.
• PVC and LSZH outer jacket options are available for different indoor requirements.
• Available with single-mode and multimode fiber types.
• Multiple cable sizes and jacket colors are available for customization.
• Separable web design allows the two simplex units to be easily divided when required.
• 600 μm and 900 μm tight buffer options are available for different cable designs.
• High-strength aramid yarn provides reliable tensile protection for each fiber.
• PVC and LSZH outer jacket options are available for different indoor requirements.
• Available with single-mode and multimode fiber types.
• Multiple cable sizes and jacket colors are available for customization.
