Aerial Self-Supporting Figure 8 Fiber Optic Cable GYTC8A
Aerial Self-Supporting Figure 8 Fiber Optic Cable GYTC8A

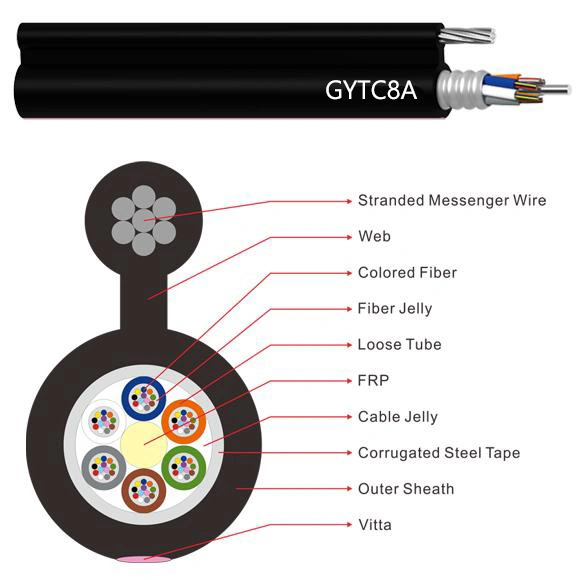

The figure 8 fiber cable is consist of loose tube, stranded messenger wire, outer sheath. It has special control of exceed length ensure the good transmission performance in varying environment. It is especially suitable for Small outer diameter, lightness and compact construction.
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters:
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
GYTC8A-2~6 | 2~6 | 1 | 4 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A-8~12 | 8~12 | 2 | 3 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A-14~18 | 14~18 | 3 | 2 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A -20~24 | 20~24 | 4 | 1 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A-26~30 | 26~30 | 5 | 0 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
