Outdoor Underground Directly Buried Stranded Loose Tube Cable GYTY53
Outdoor Underground Directly Buried Stranded Loose Tube Cable GYTY53

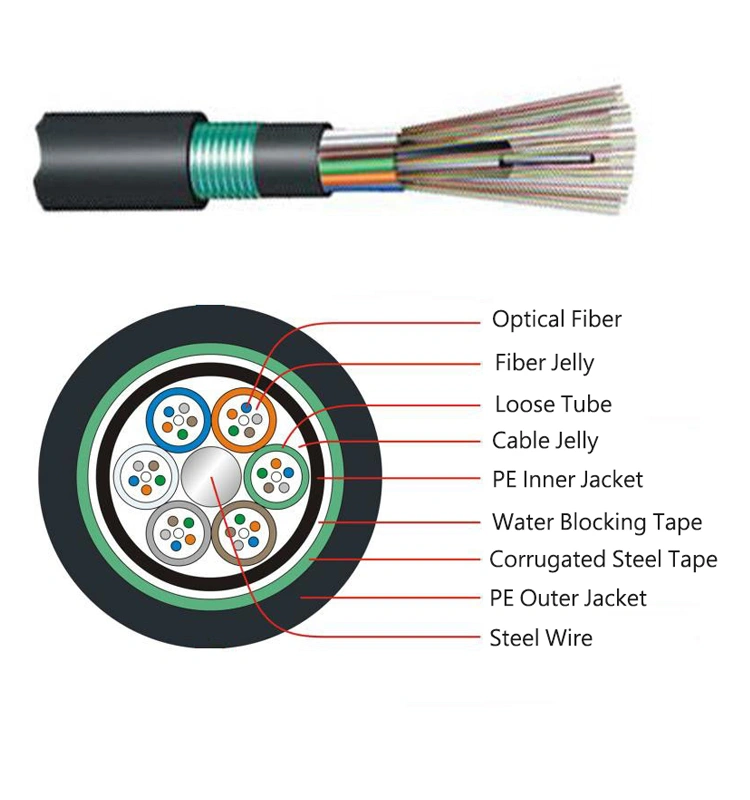

The loose tube fiber cable are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Characteristrics
Outdoor loose tube stranded armored optic fiber cable
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Standards
GYTA53 cable complies with standard Y D/T 907-2001 as well as IEC 60794-1
Applications
Used for long-distance communication and local network
Laying Method
Direct burial and duct
Optical Characteristics：
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters：
Fiber range | outer diameter | weight | min. bending radius | alowable tension | max. crash loading force | |||
static | dynamic | short term | long term | short term | long term | |||
2-24 | 12.6 | 185 | 12.5 times cable diameter | 25 times cable diameter | 3000N | 1000N | 3000N | 1000N |
26-36 | 12.9 | 195 | ||||||
38-60 | 13.4 | 200 | ||||||
62-72 | 13.9 | 230 | ||||||
74-96 | 15.5 | 275 | ||||||
98-120 | 17 | 320 | ||||||
122-144 | 18.4 | 365 | ||||||
146-216 | 18.9 | 385 | ||||||
218-240 | 22.1 | 495 | ||||||
242-288 | 24.3 | 580 | ||||||
