Outdoor Central Loose Tube Metalic Duct Cable GYXTW
Outdoor Central Loose Tube Metalic Duct Cable GYXTW

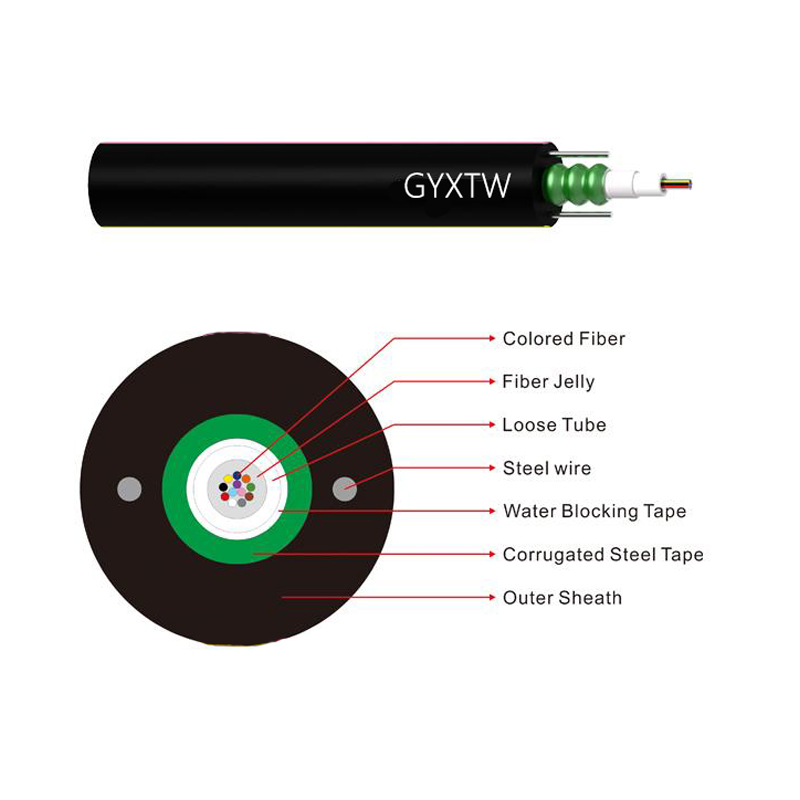

The 250μm fibers are positioned in a loose tube made of a high modulus plastic. The tubes of GYXTW are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the fiber optic cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The fiber optic cable is completed with a polyethylene (PE) sheath.
Features:
Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fieds:
Aerial, Duct
Temperature Characteristics:
Operate temperature range: -40oC to +70oC
Storage temperature range: -40oC to +70oC
Fiber Parameter:
G.652D | G.655 | 50/125μm | 62.5/125μm | ||
Attuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.24 dB/km | ≤0.23 dB/km | |||
Wavelength (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Specifications:
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
| GYXTW-2~12 | 2~12 | 8 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXTW-14~24 | 14~24 | 8 | 120 | 1000/3000 | 1000/3000 | 10D/20D |

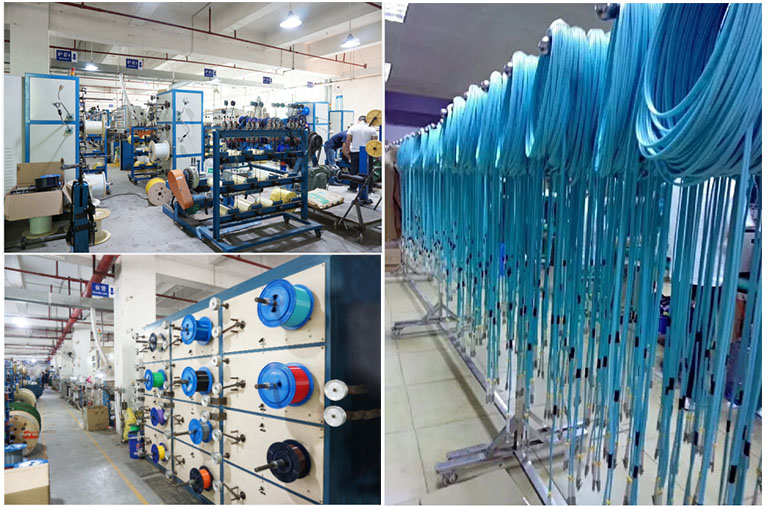

Manufacturing
We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few product is 7- 10 days.
