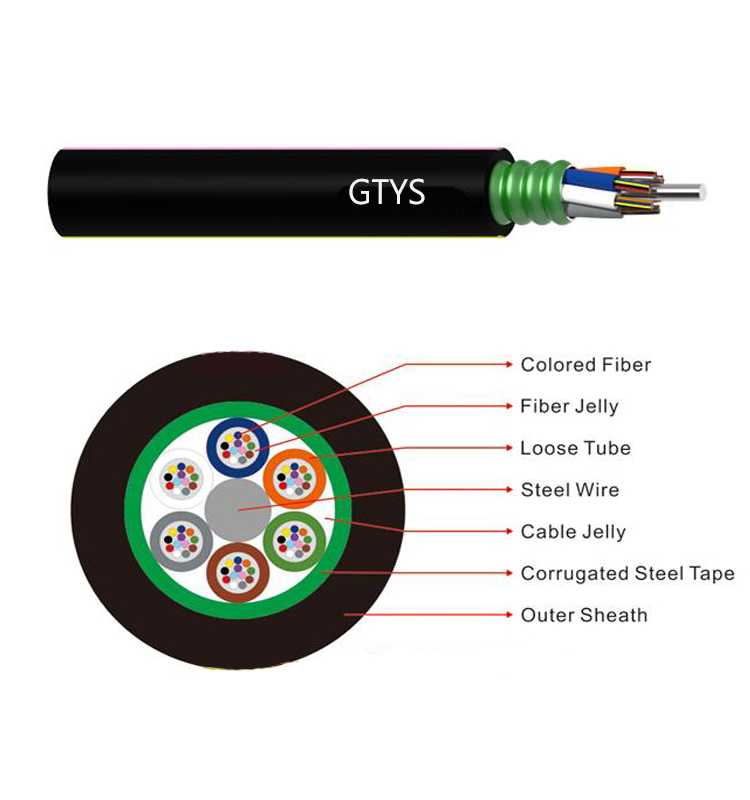

The 250μm fibers are positioned in a loose tube made of a high modulus plastic. The outdoor armored fiber optic cable tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The fiber optic cable is completed with a PE sheath.
Characteristics:
Good mechanical and temperature performance
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
Crush resistance and flexibility
PE sheath protects cable from ultraviolet radiation
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius /Dynamic mm |
GYTS-2~6 | 2~6 | 1 | 4 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
GYTS-8~12 | 8~12 | 2 | 3 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
GYTS-14~18 | 14~18 | 3 | 2 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
GYTS-20~24 | 20~24 | 4 | 1 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
GYTS-26~30 | 26~30 | 5 | 0 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
GYTS-32~36 | 32~36 | 6 | 0 | 10.6 | 129 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-38~48 | 38~48 | 4 | 1 | 11.2 | 141 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-50~60 | 50~60 | 5 | 0 | 11.2 | 141 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-62~72 | 62~72 | 6 | 0 | 12 | 159 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-74~84 | 74~84 | 7 | 1 | 13.6 | 209 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-86~96 | 86~96 | 8 | 0 | 13.6 | 209 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-98~108 | 98~108 | 9 | 1 | 15.4 | 232 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-110~120 | 110~120 | 10 | 0 | 15.4 | 232 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-122~132 | 122~132 | 11 | 1 | 17.2 | 280 | 1000/3000 | 300/1000 | 10D/20D |
GYTS-134~144 | 134~144 | 12 | 0 | 17.2 | 280 | 1000/3000 | 300/1000 | 10D/20D |

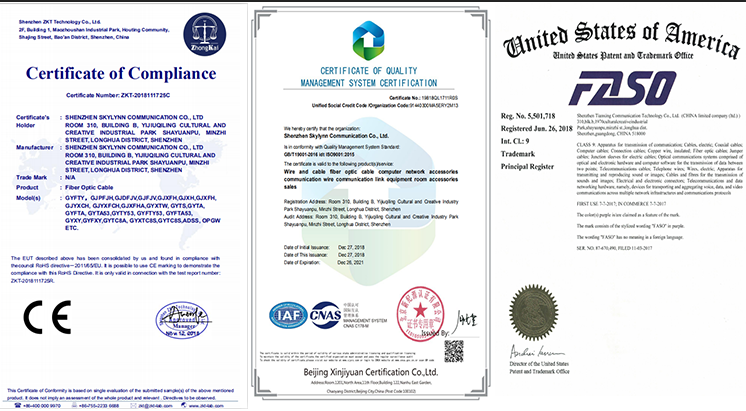

CERTIFICATION
