Figure 8 Self-supporting Outdoor Fiber Optic Cable-GYXTC8S
Figure 8 Self-supporting Outdoor Fiber Optic Cable-GYXTC8S

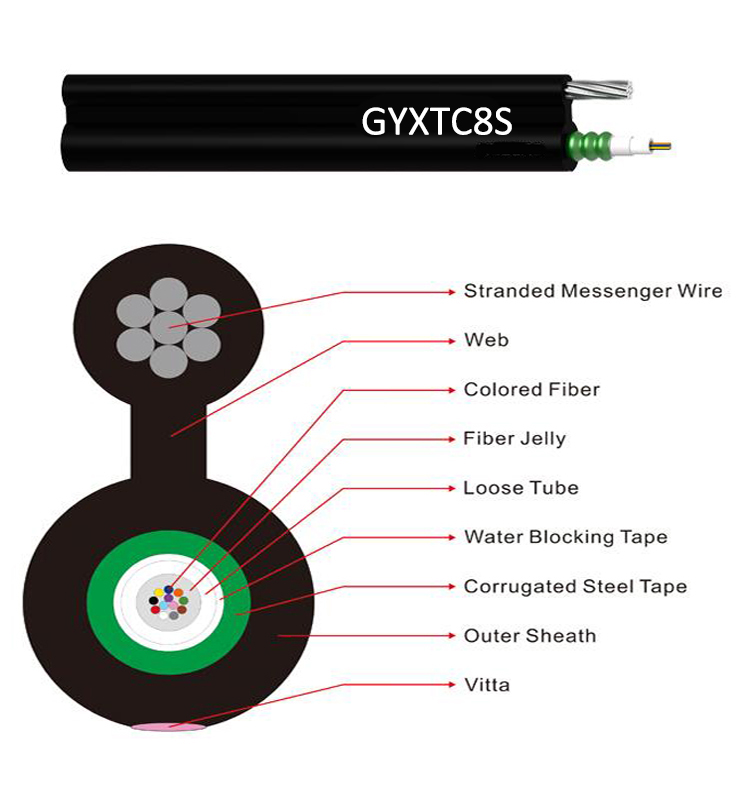

The metal strength member of self supporting fiber optic cable is made up of stranded steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Applications:
Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.
Features:
Central loose tube with jelly compound inside to protect the cladding fiber.
Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.
Good mechanical and temperature resistant performance.
The cross-section in fig8 structure.
Crush resistance and flexibility.
Light weight and small diameter, easy to installation and operation
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters:
Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Supporting Wire Spec | Connection Diameter | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
GYXTC8S | 2~12 | 7.65×14.5 | 118 | Φ1.0mm*7 | Height×Width | 1000/2500 | 300/1000 | 80/160 |
Stranded wires | 3.0×2.5 mm | |||||||
GYXTC8S | 14~24 | 8.2×15.1 | 129 | Φ1.0mm*7 | Height×Width | 600/1500 | 300/1000 | 90/180 |
Stranded wires | 3.0×2.5 mm |
