Outdoor Stranded Loose Tube Duct Non-armored Fiber Optic Cable GYFTY
Outdoor Stranded Loose Tube Duct Non-armored Fiber Optic Cable GYFTY

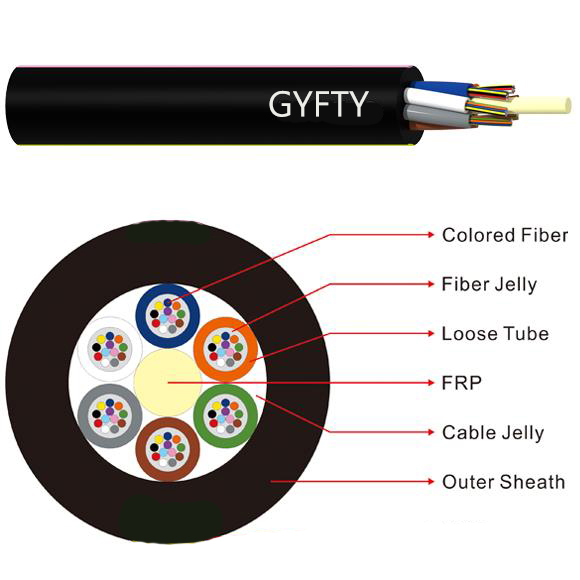

The 250μm gyfty cables are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the gyfty cable is completed with a PE sheath.
Features:
Good mechanical and temperatureperformance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Optical Characteristics：
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters：
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
mm | Long/Short Term N | Long/Short Term | Static | |||||
|
| N/100mm | /Dynamic | |||||
|
|
| mm | |||||
GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 4 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 3 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY -20~24 | 20~24 | 4 | 2 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 0 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 6 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 5 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 4 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 3 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 2 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 1 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 0 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 4 | 2 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 1 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 0 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 7 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 6 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 5 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 4 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 3 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 2 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 1 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 8 | 0 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 2 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 1 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-74~84 | 74~84 | 7 | 0 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
