Non-metallic Air Blown Micro Fiber Optic Cable
Non-metallic Air Blown Micro Fiber Optic Cable

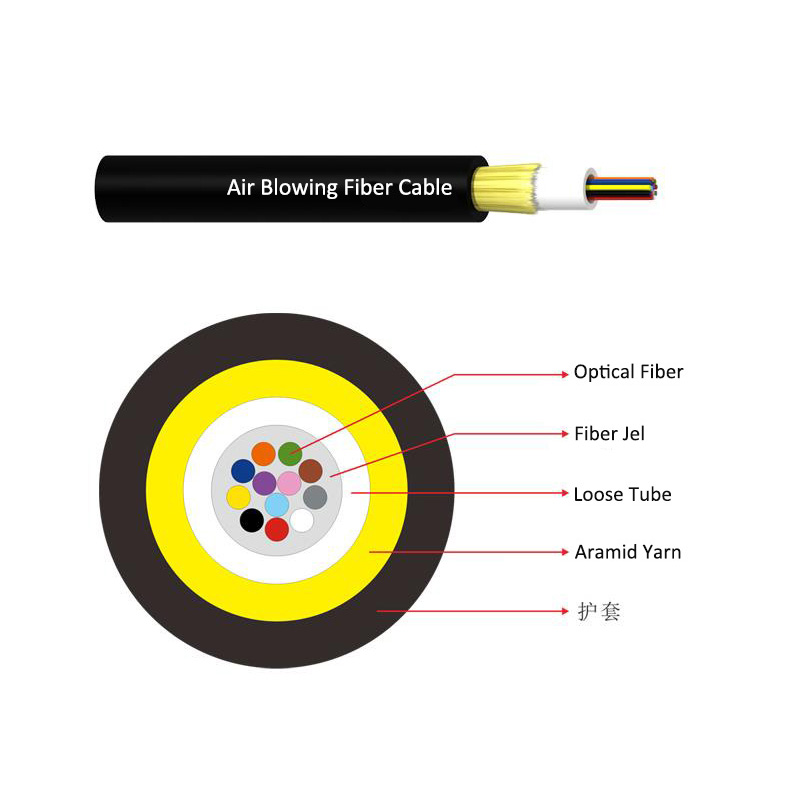

Conventional center tube air blown fiber optic cable, 2 to 24 fibre 250 µm Micro Fiber Optic Cables with aramid strength members and single LSZH jacket. The cables consist of 2 to 24, 250 µm OM1, OM2, OM3, OM4 multimode or ITU-T G.652D, ITU-T G.657A1 or ITU-T G.657A2 single mode optical fibres in a 2.95 mm Low Smoke Zero Halogen (LSZH) inner jacket with aramid strength members.
Feature:
Perfect cable structure with high fiber density
Accurate fiber length balance to ensure stable performance
No gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Greater blowing distance
Fiber: G.G652D, G.657A1, G657A2 & multimode fiber
Special complex material loose tube, reduce the shrink of tube in cold temperature.
Accurate fiber length balance, stable mechanical and temperature performance.
Particular technique control, prevent sheath form crinkling during installation.
Structure Innovation in sheath, enhancing the blowing performance.
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters:
| P/N | Fiber count | Nominal diameter | Nominal weight | Max tensile strength | Temperature |
| (F) | (mm) | (kg/km) | (N) | (℃) | |
| MICROC-2G652D-PE | 2 | 4.0±0.1 | 10 | 120 | -40 to +60 |
| MICROC-4G652D-PE | 4 | 4.0±0.1 | 10 | 120 | |
| MICROC-6G652D-PE | 6 | 4.0±0.1 | 10 | 120 | |
| MICROC-8G652D-PE | 8 | 4.0±0.1 | 10 | 120 | |
| MICROC-12G652D-PE | 12 | 4.0±0.1 | 10 | 120 | |
| MICROC-24G652D-PE | 24 | 4.5±0.1 | 14 | 150 |
BLOWING PERFORMANCE:
| Fiber count (F) | Blowing machine | Suitable microduct (mm) | Blowing pressure (bar) | Blowing distance in 7/5.5 duct (m) | Blowing distance in 10/8 duct (m) |
| 2 to 12 | PLUMETTAZ PR-196 | 7/5.5 or 10/8 | 15 | 1500 | 2500 |
| 14 to 24 | or PR-140 | 7/5.5 or 10/8 | 1300 | 2200 |
ABOUT US
Faso Photonics Technology Limited Since 2007
Faso Photonics Technology Limited is a professional manufacturer engaged in R & D, production and sales of optical fiber communication devces and ancilary prducts, ptical fiber patch panel, splicing enclosure etc.We have a complete and scientific quality managementsystem. The company passed the certification of Bellcore,UL, ROHS, IS09001 standard system, strictly carries out 5Smanagement, adopts the dust-free workshop, has advancedinternational equipment, and the qualfed rate of the prod-ucts reaches 99.896. Companies in good faith, strength andquality of products recognized by the industr.

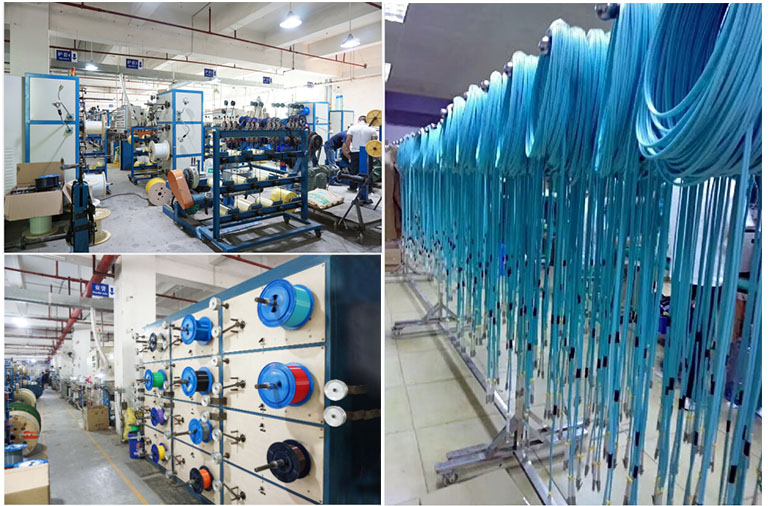

MANUFACTURING
