Outdoor Central Loose Tube Metalic Duct Cable GYXTW

Outdoor Central Loose Tube Metalic Duct Cable GYXTW

Model NO.: GYXTW
Delivery: EXW/FOB/CIF Etc.
Country of Origin: GUA,CN

Quantity:

Product Description

Outdoor Central Loose Tube Metalic Duct Cable GYXTW

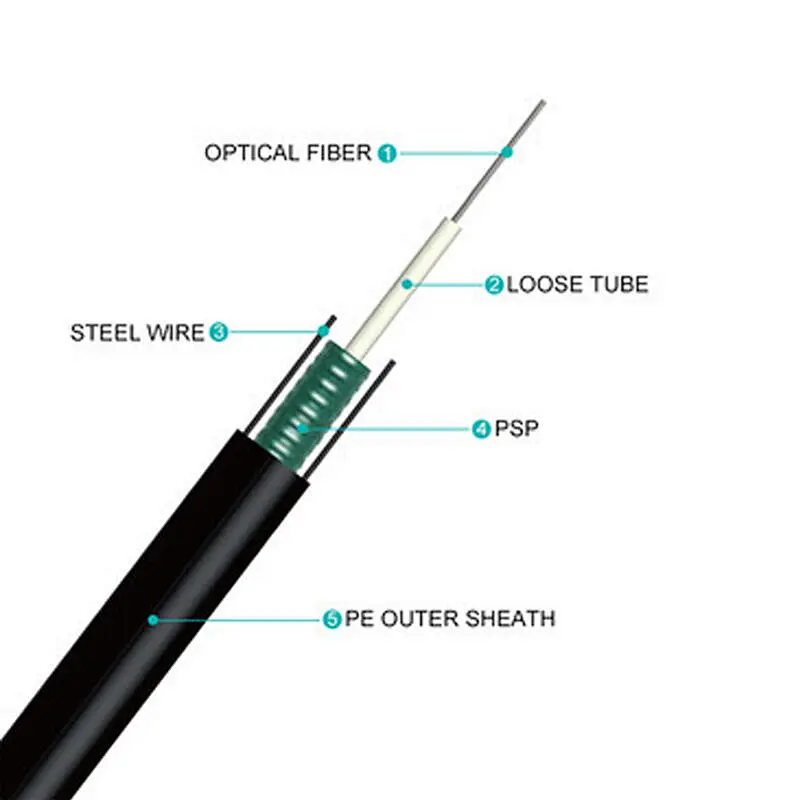

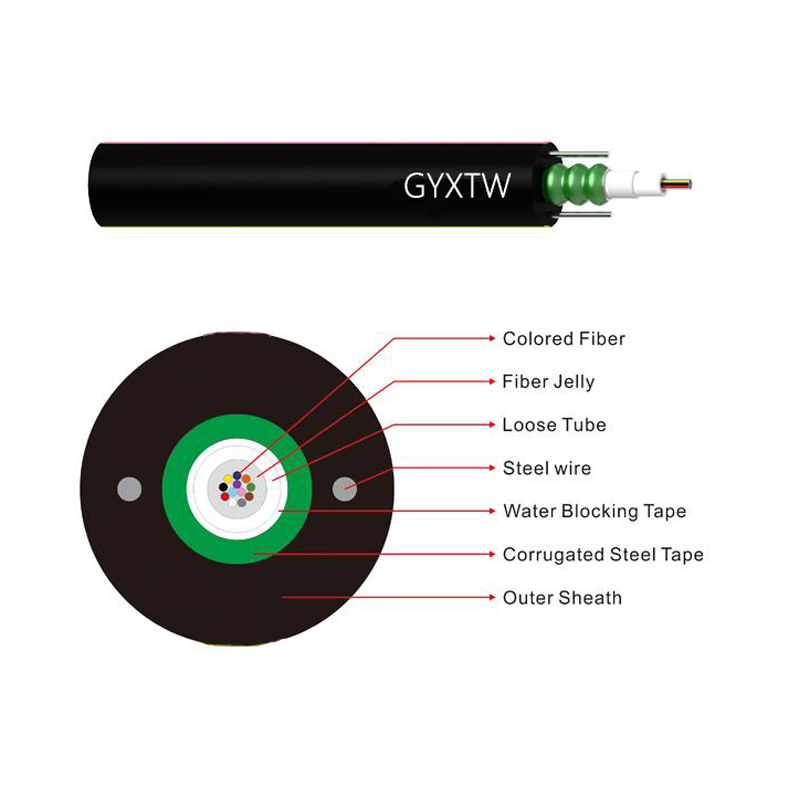

The 250μm fibers are positioned in a loose tube made of a high modulus plastic. The tubes of GYXTW are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the fiber optic cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The fiber optic cable is completed with a polyethylene (PE) sheath.

Features:

Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance

Appicable fieds:

Aerial, Duct

Temperature Characteristics:

Operate temperature range: -40oC to +70oC

Storage temperature range: -40oC to +70oC

Fiber Parameter:

		G.652D	G.655	50/125μm	62.5/125μm
Attuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.24 dB/km	≤0.23 dB/km
Wavelength (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Wavelength (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA

Cable Specifications:

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYXTW-2~12	2~12	8	105	600/1500	300/1000	10D/20D
GYXTW-14~24	14~24	8	120	1000/3000	1000/3000	10D/20D

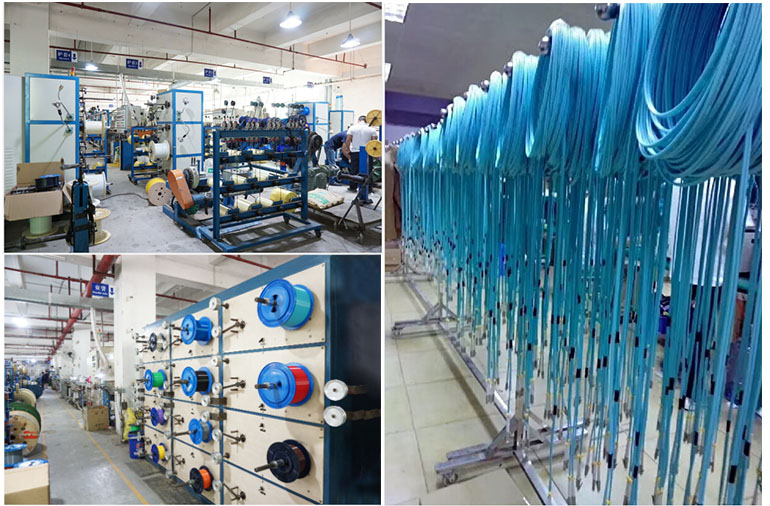

Manufacturing

We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.

Manufacturing

Testing

All products have passed professional tests in order to providing better quality guarentee.

Testing

Certification

After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.

Certification

FAQ

Q: Are you manufacturer?

A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.

Q: Why choose us?

A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.

Q: How can I get your price list?

A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.

Q: How can I get some samples?

A: We offer free samples for most of products. But you should pay the shipping cost.

Q: What about delivery time?

A: The delivery of most product is 3-7days, some few product is 7- 10 days.
