Outdoor Central Loose Tube No-metal Duct Cable GYFXTY
GYFXTY
Delivery
EXW/FOB/CIF etc.
Country of Origin
GUA,CN
Quantity:

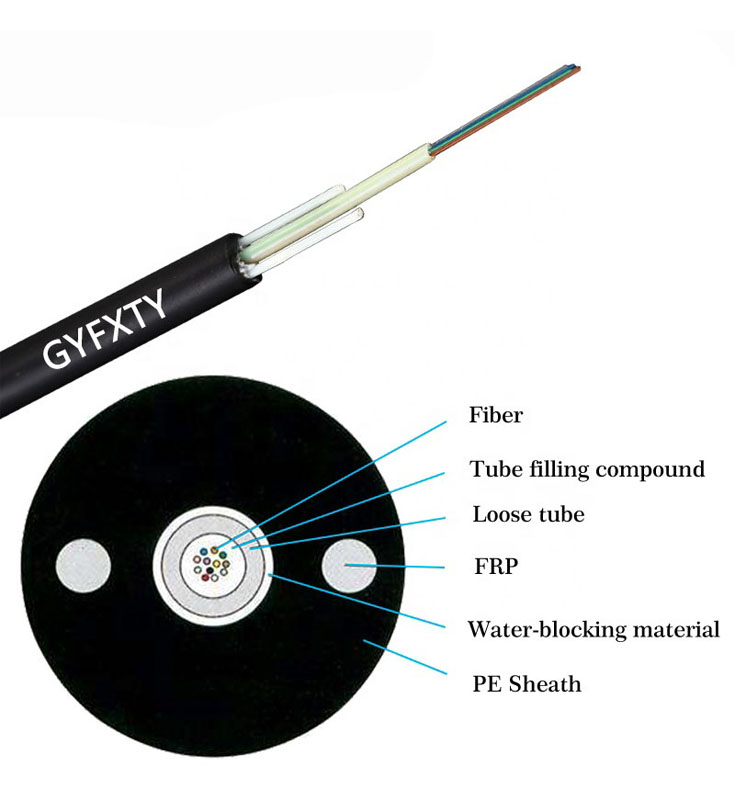

Outdoor Central Loose Tube No-metal Duct Cable GYFXTY
The outdoor cable ducting use high strength loose tube that is hydrolysis resistant. Our duct cable has good mechanical and temperature performance. FRP ensure tensile strength. It is suitable for communication equipment serve.
Application:
-Adopted to indoor and outdoor distribution.
-Suitable for communication equipment serve.
Characteristics:
-Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· FRP ensure tensile strength.
· Small diameter, light weight and friendly installation.
Technical Data:
| Fiber count | Cable outer dia(mm) | Cable weight(kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2--12 | 8 | 70 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 14--24 | 8.7 | 81 | 10D | 20D | 1500 | 600 | 1000 | 600 |
