Underground Directly Buried Central Outdoor Loose Tube cable GYXTW53
Underground Directly Buried Central Outdoor Loose Tube cable GYXTW53

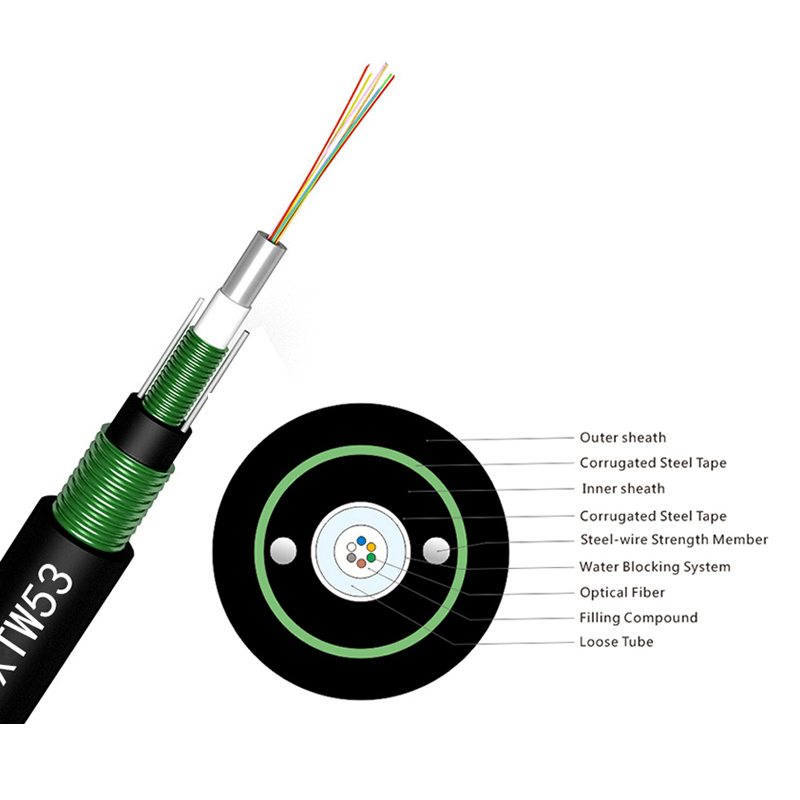

The fibers are placed in a losse tube made of PBT. The tube is filled with a water-resistant filling compound.The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water -blocking material is applied to keep the cable compact and waterlight. Two parallel steel wires are placed at the two sides of the steel tape,over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath,the outdoor armored fiber optic cable is completed with a PE outer sheath
FEATURES::
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
APPLICATION:
- Long-distance teecom,LAN in high -votage area or access to telecom network
- Installation: Sef-support aeria
STRUCTURE CHARACTERS:
Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period
Technical Characteristics:
Cable Count | Out sheath Diameter | Weight | Minimum allowable TensileStrength (N) | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
| MM | KG | Short term | Long term | Short term | Long term | Short term | Long term | °C | |
| 2 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 4 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 6 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 8 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 10 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 12 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 24 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
