Central Loose Tube Cable for Indoor Use
Central Loose Tube Cable for Indoor Use

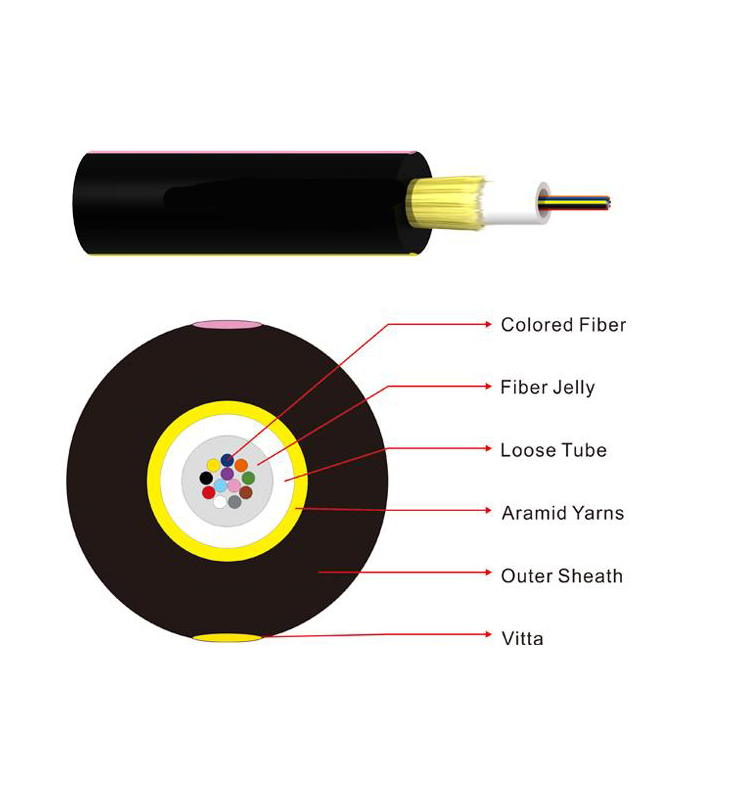

The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The central loose tube cable are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.
Application:
-Adopted to indoor and outdoor distribution.
-Suitable for communication equipment serve.
Characteristics:
Non-mental design can prevent the cable from radio interference and magnetic wave interference
Specially designed compact structure is good at preventing loose tubes from shrinking
Aramid yarn ensures good performance of tensile strength
Loose tube filling compound ensure good moisture resistance performance
Good flexibility
High dense fiber packed, small diameter and light weight; it's the better option for blowing installation process
Application
Adopted to backbone network, access network and fiber to the home.
Adopted to backbone network, access network and fiber to the home.
Optical Characteristics:
| G.652 | G.655 | 50/125μm OM2 | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters:
| Cable Type | Fiber Count | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
| mm | Long/Short Term N | Long/Short Term N/100mm | Static /Dynamic mm | |||
| Jet | 2~24 | 6 | 30 | 150/300 | 200/500 | 15D/30D |
