Outdoor Central Loose Tube No-metal Duct Cable GYXY
Outdoor Central Loose Tube No-metal Duct Cable GYXY

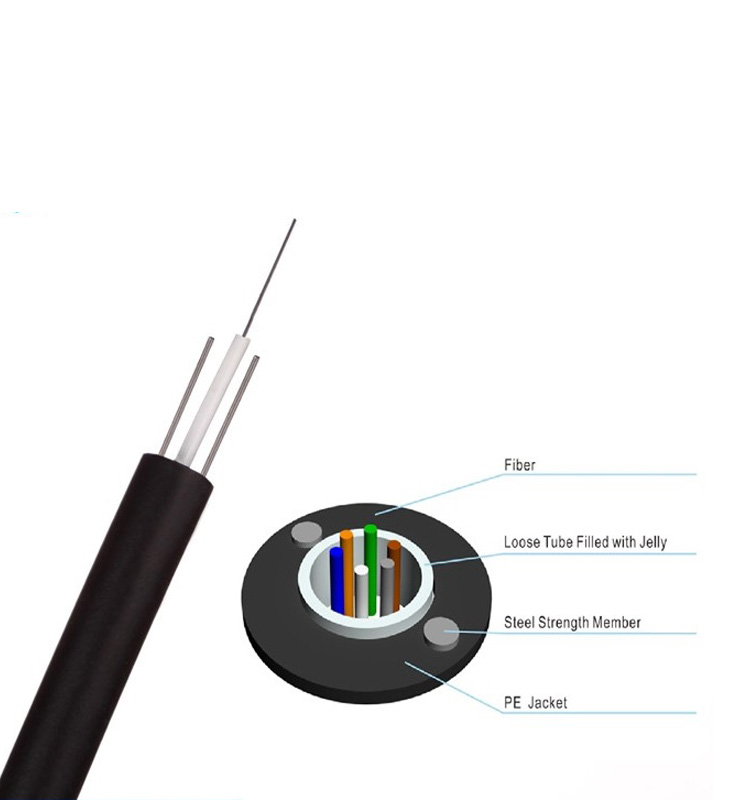

The outdoor cable ducting is adopted to indoor and outdoor distribution. It is suitable for communication equipment serve. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.Special tube filling compound ensures a critical protection of fiber.
-Adopted to indoor and outdoor distribution.
-Suitable for communication equipment serve.
Characteristics:
-Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· FRP ensure tensile strength.
· Small diameter, light weight and friendly installation.
Technical Data:
Fiber count | Cable outer dia(mm) | Cable weight(kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2--12 | 8 | 70 | 10D | 20D | 1500 | 600 | 1000 | 600 |
14--24 | 8.7 | 81 | 10D | 20D | 1500 | 600 | 1000 | |
CERTIFICATION
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO9001 Certified factor.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few produc is 7- 10days.
